Kopplingsschema och kodexempel

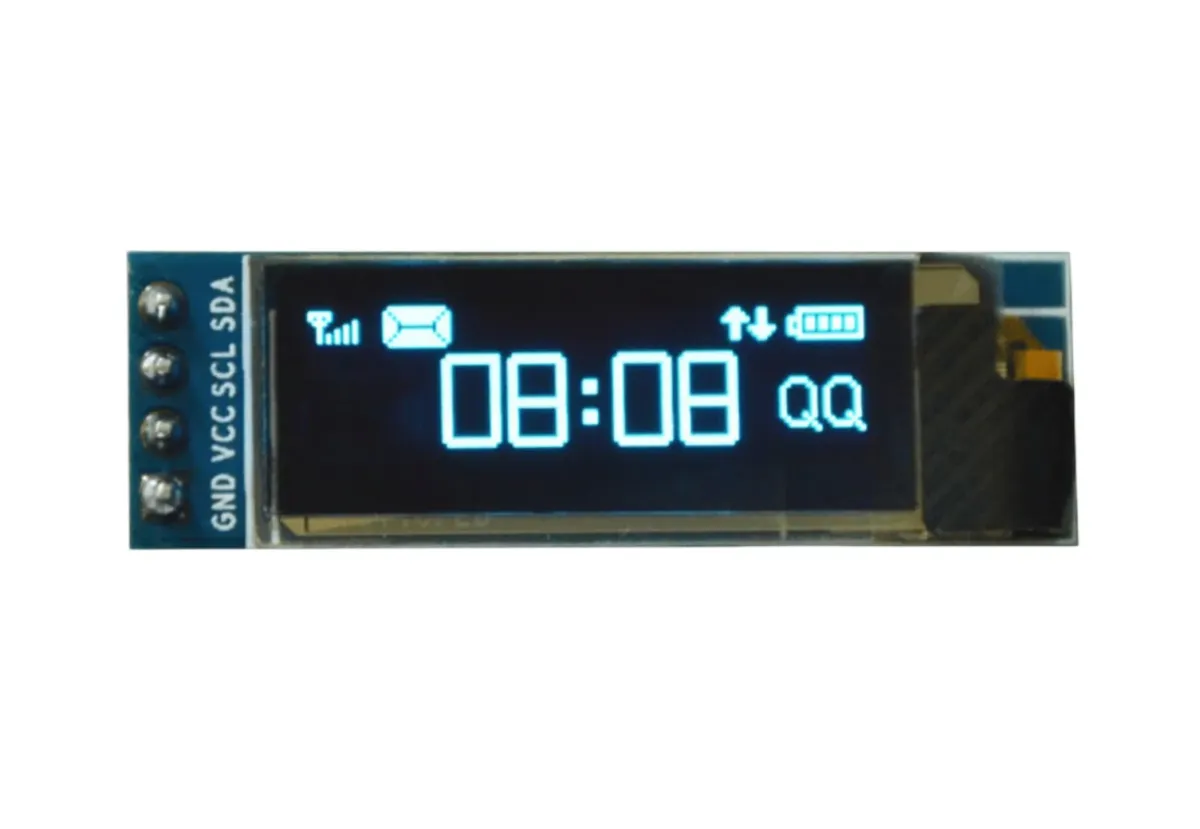

Så här kopplar du Mini OLED-display vit 0.91 tum 128x32 I2C till en Arduino UNO eller ESP32, med ett exempel­sketch som du kan ladda upp direkt.

0.91-inch I2C OLED Display Demo

This project demonstrates how to initialize and display text and a live counter on a 0.91-inch 128x32 I2C OLED screen. The display connects directly to the Arduino Uno's I2C pins (A4 and A5) and updates continuously.

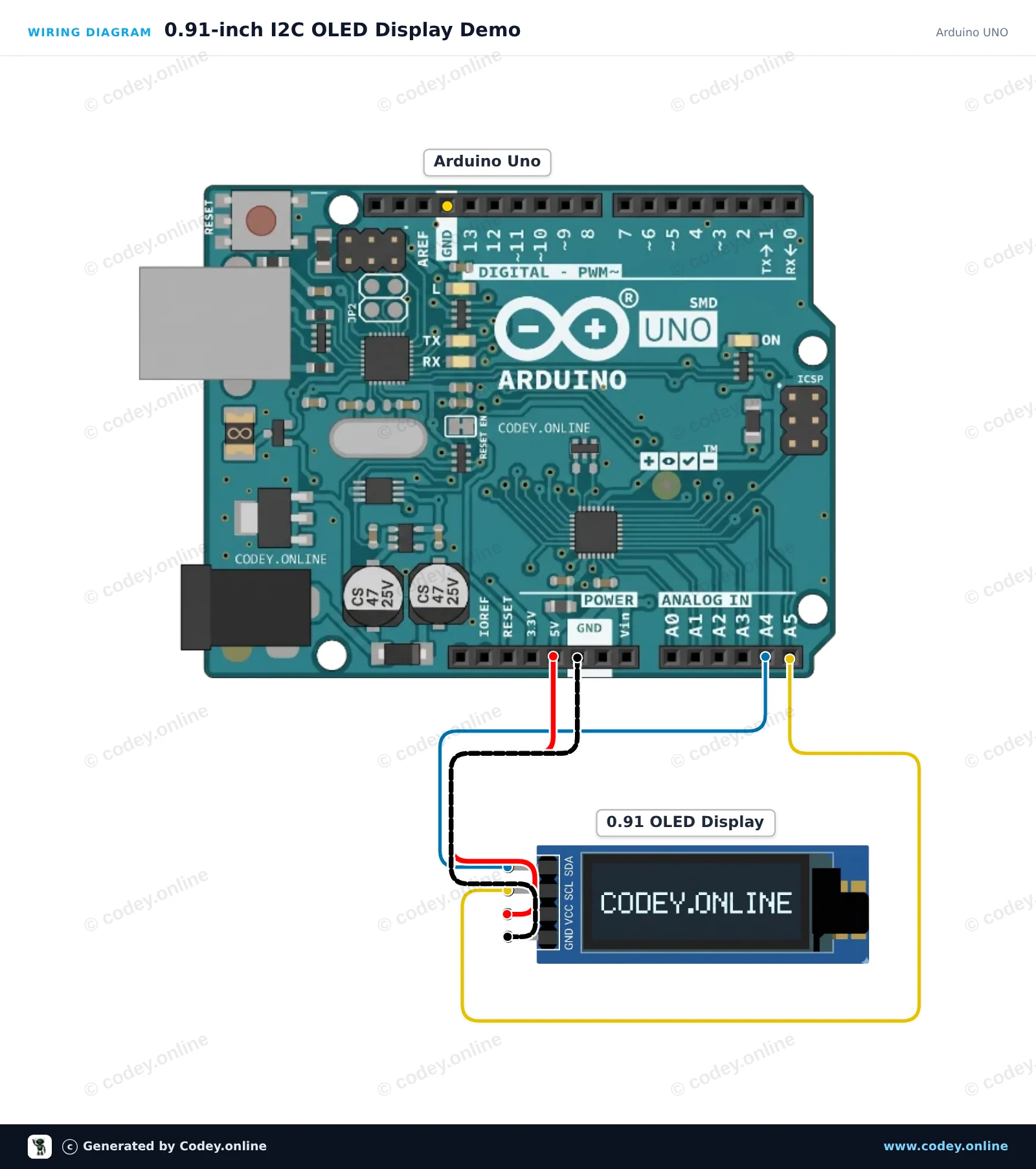

Kopplingsschema: Mini OLED-display vit 0.91 tum 128x32 I2C på en Arduino UNO
Kopplingsschema · Klicka för att förstora

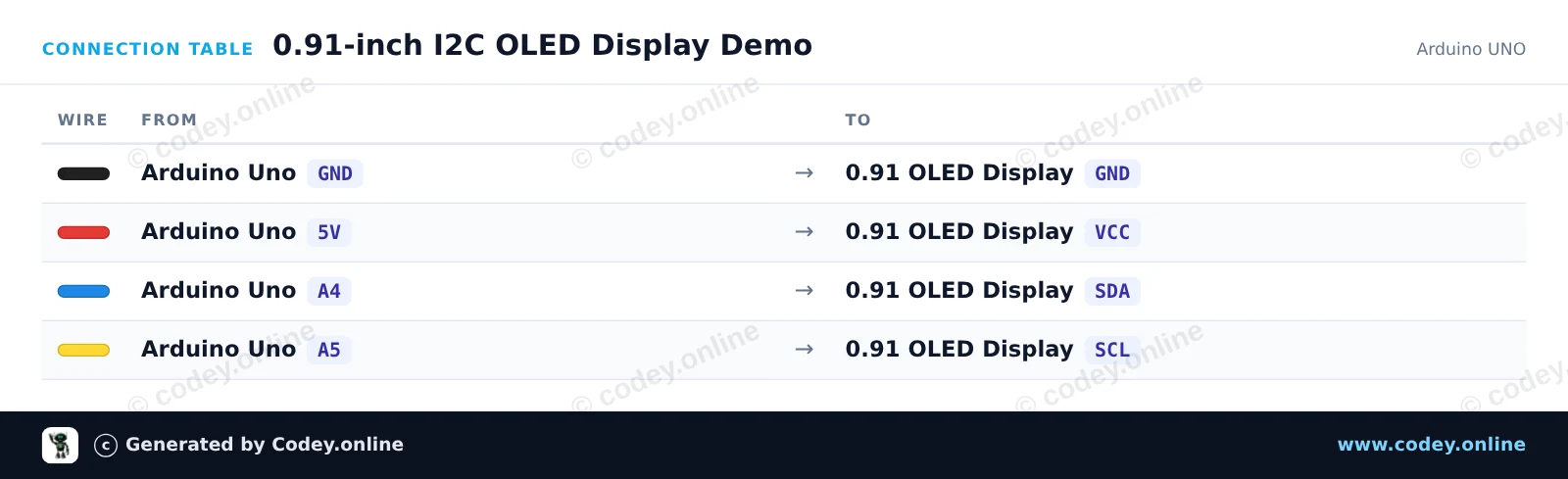

Kopplingstabell: Mini OLED-display vit 0.91 tum 128x32 I2C på en Arduino UNO
Kopplingstabell · Klicka för att förstora
0_91_inch_I2C_OLED_Display_Demo.ino · kompilerad och testad
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : 0.91-inch I2C OLED Display Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : U8g2 2.36.19
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <U8g2lib.h>

U8G2_SSD1306_128X32_UNIVISION_F_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);

unsigned long counter = 0;

void setup() {
  u8g2.begin();
}

void loop() {
  u8g2.clearBuffer();

  u8g2.setFont(u8g2_font_6x10_tf);
  u8g2.drawStr(0, 10, "0.91\" OLED Demo");

  u8g2.setFont(u8g2_font_ncenB08_tr);
  u8g2.setCursor(0, 26);
  u8g2.print(F("Count: "));
  u8g2.print(counter);

  u8g2.sendBuffer();

  counter++;
  delay(500);
}

Nödvändiga bibliotek: U8g2 2.36.19

Wiring diagram and example code generated by Codey.online — https://www.codey.online

ESP32 0.91 Inch OLED Display Demo

This project displays text and a running counter on a 0.91-inch 128x32 I2C OLED display using the ESP32. Connect the display directly to the default I2C pins (GPIO 21 and 22) and power it via 3.3V. Upload the sketch and watch the display refresh every second.

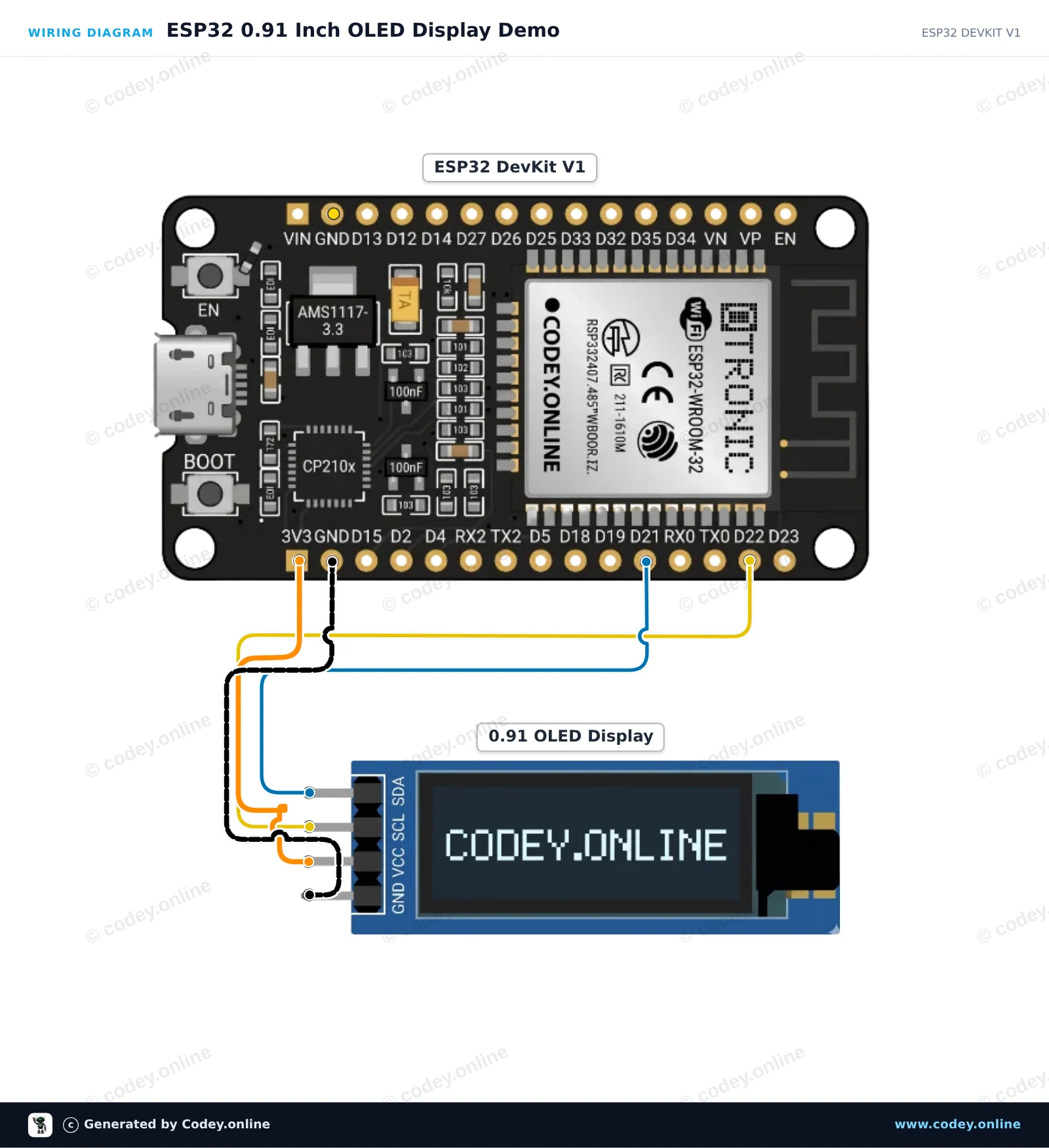

Kopplingsschema: Mini OLED-display vit 0.91 tum 128x32 I2C på en ESP32 DevKit V1
Kopplingsschema · Klicka för att förstora

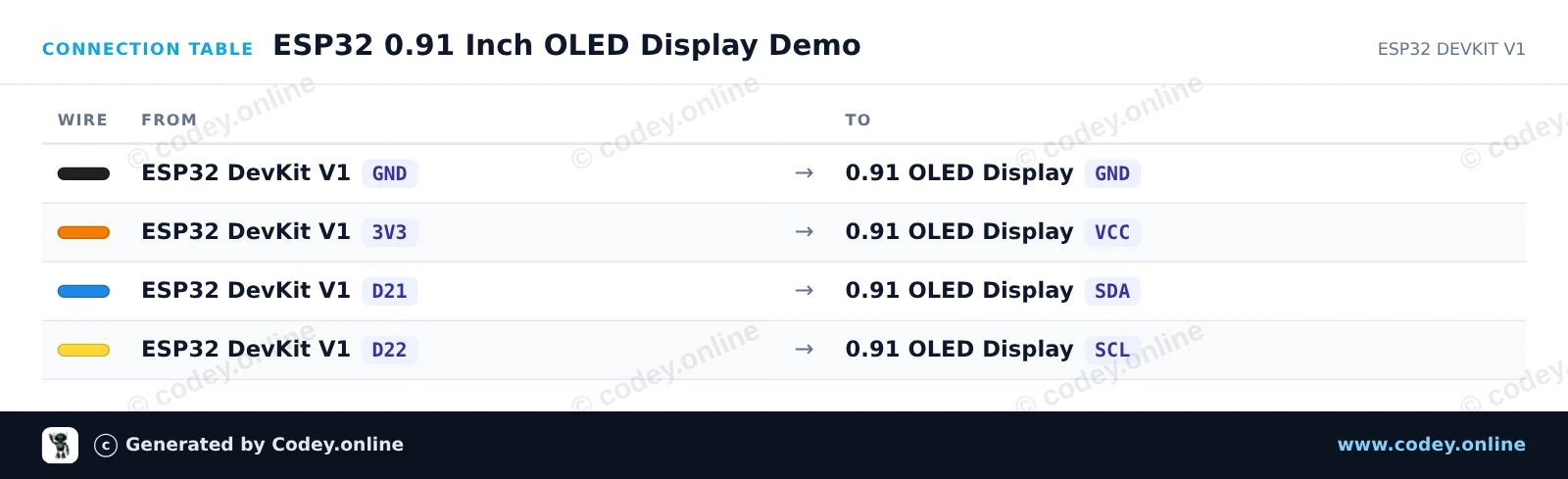

Kopplingstabell: Mini OLED-display vit 0.91 tum 128x32 I2C på en ESP32 DevKit V1
Kopplingstabell · Klicka för att förstora
ESP32_0_91_Inch_OLED_Display_Demo.ino · kompilerad och testad
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : ESP32 0.91 Inch OLED Display Demo
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 32
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

int counter = 0;

void setup() {
  Serial.begin(115200);

  // Initialize I2C on ESP32 default pins: SDA (GPIO 21), SCL (GPIO 22)
  Wire.begin(21, 22);

  if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
    Serial.println(F("SSD1306 allocation failed"));
    while (true);
  }

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("ESP32 OLED Demo"));
  display.display();
  delay(2000);
}

void loop() {
  display.clearDisplay();

  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("Hello from ESP32!"));

  display.setTextSize(2);
  display.setCursor(0, 14);
  display.print(F("Count: "));
  display.print(counter);

  display.display();

  counter++;
  delay(1000);
}

Nödvändiga bibliotek: Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6

Wiring diagram and example code generated by Codey.online — https://www.codey.online
