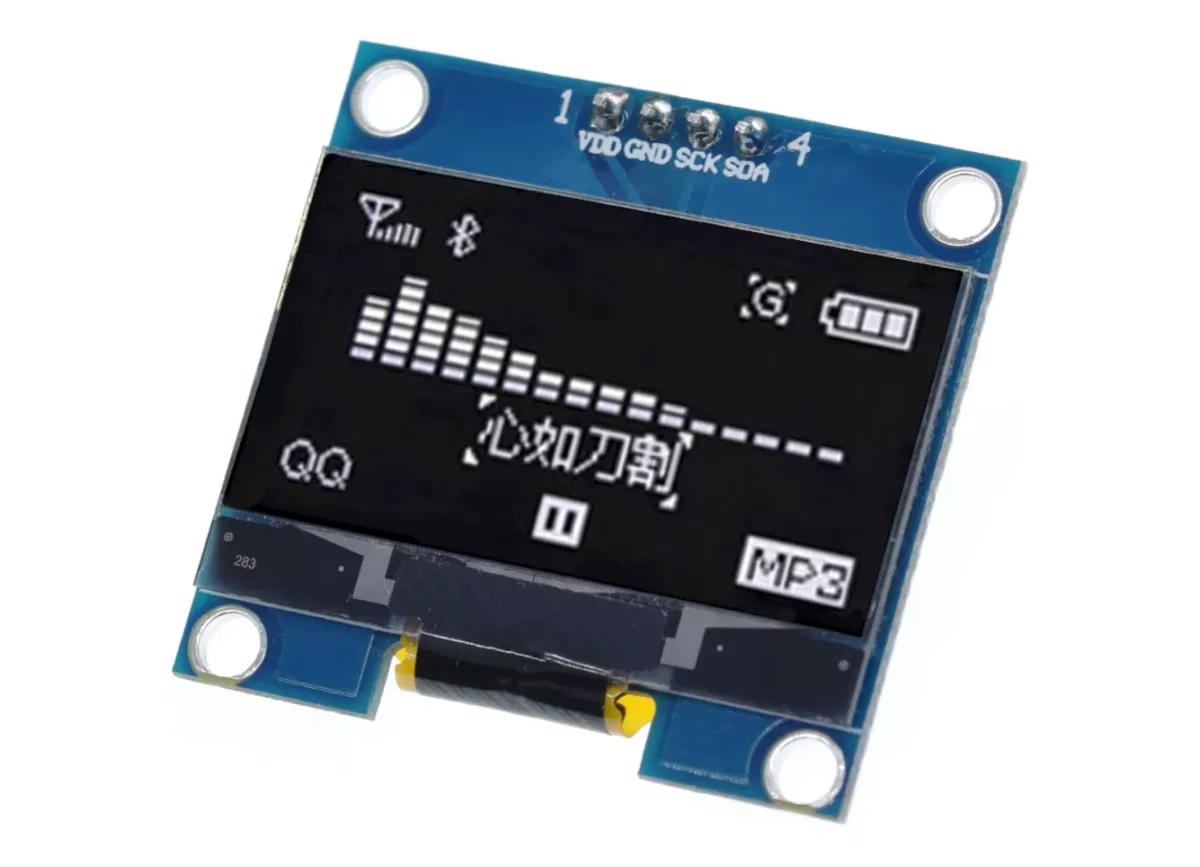

Denna kompakta OLED-display har en diagonal på 1.3 inch och en upplösning på 128x64 pixlar. Tack vare den vita visningen är skärmen lättläst under olika ljusförhållanden.
Displayen är idealisk för projekt där en tydlig och skarp skärm behövs med en enkel I2C-anslutning. Det breda spänningsområdet och den robusta temperaturtåligheten gör den lämplig för olika tillämpningar.
Så här kopplar du Mini OLED display vit 1.3 inch 128x64 I2C till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.

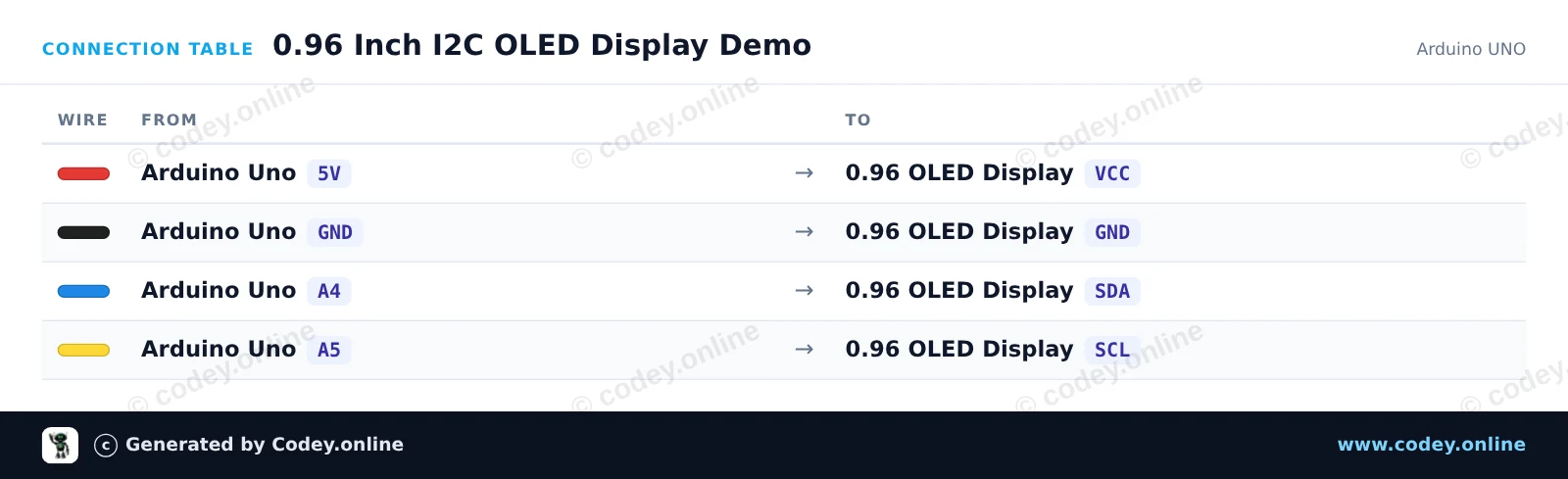

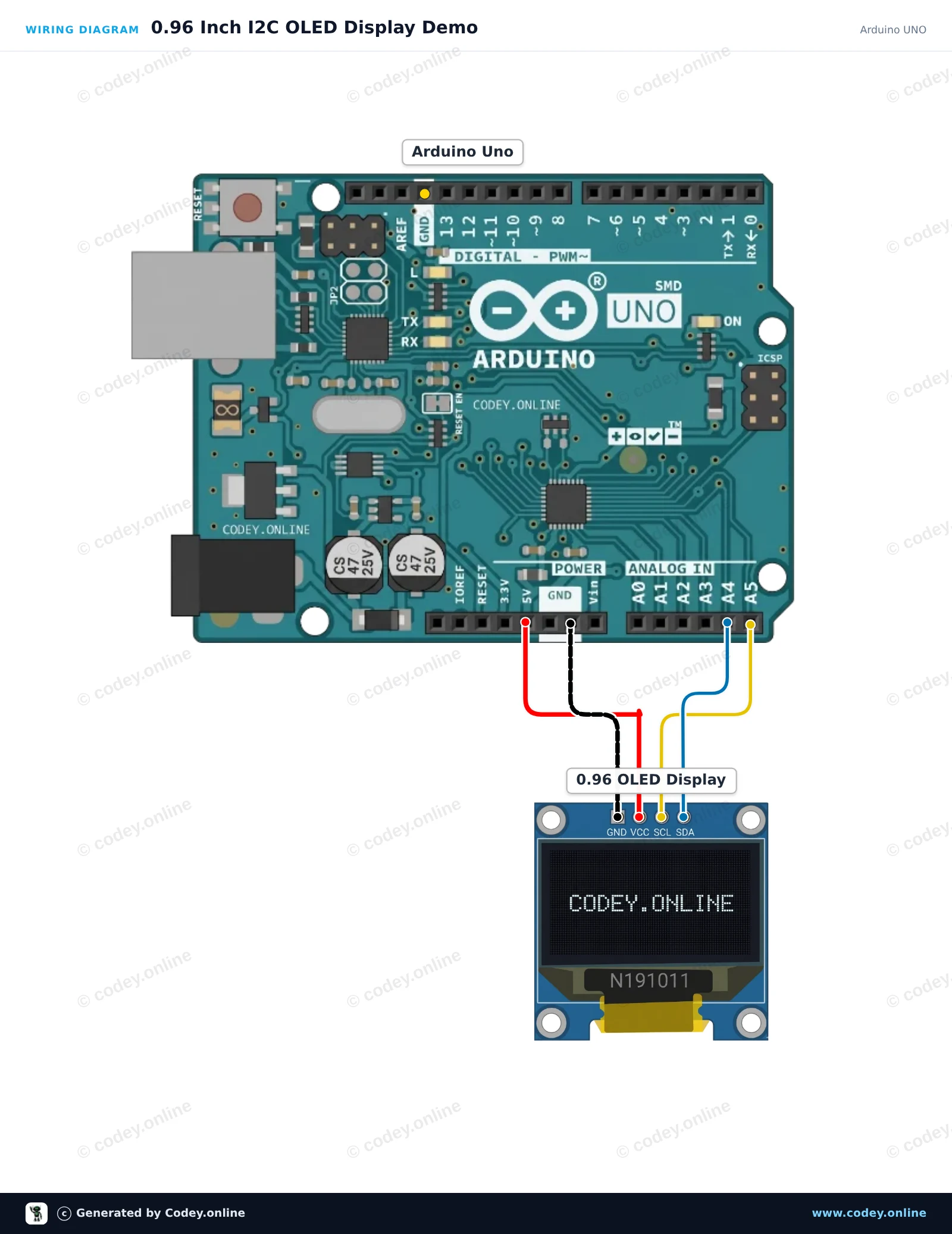

This project demonstrates how to connect and display text, graphics, and a counter on a 0.96-inch I2C OLED display with an Arduino Uno. The sketch uses the lightweight U8g2 library to render a title, separator line, and incrementing counter.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 0.96 Inch I2C OLED Display Demo
* Board : Arduino UNO (arduino:avr:uno)
* Parts : OLED Display 0.96 inch
* Libraries : U8g2 2.36.19
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Wire.h>
#include <U8g2lib.h>
// Initialize U8g2 for 128x64 SSD1306 OLED using hardware I2C
U8G2_SSD1306_128X64_NONAME_1_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE);
int counter = 0;
void setup() {
Serial.begin(115200);
u8g2.begin();
Serial.println(F("OLED display initialized."));
}
void loop() {
u8g2.firstPage();
do {
// Header
u8g2.setFont(u8g2_font_ncenB08_tr);
u8g2.drawStr(0, 12, "Arduino Uno + OLED");
// Dividing line
u8g2.drawLine(0, 16, 127, 16);
// Counter value
u8g2.setFont(u8g2_font_ncenB12_tr);
u8g2.setCursor(0, 40);
u8g2.print(F("Count: "));
u8g2.print(counter);
// Footer / status
u8g2.setFont(u8g2_font_6x10_tr);
u8g2.drawStr(0, 58, "Status: Running");
} while (u8g2.nextPage());
counter++;
delay(1000);
}
Nödvändiga bibliotek: U8g2 2.36.19
Wiring diagram and example code generated by Codey.online — https://www.codey.online

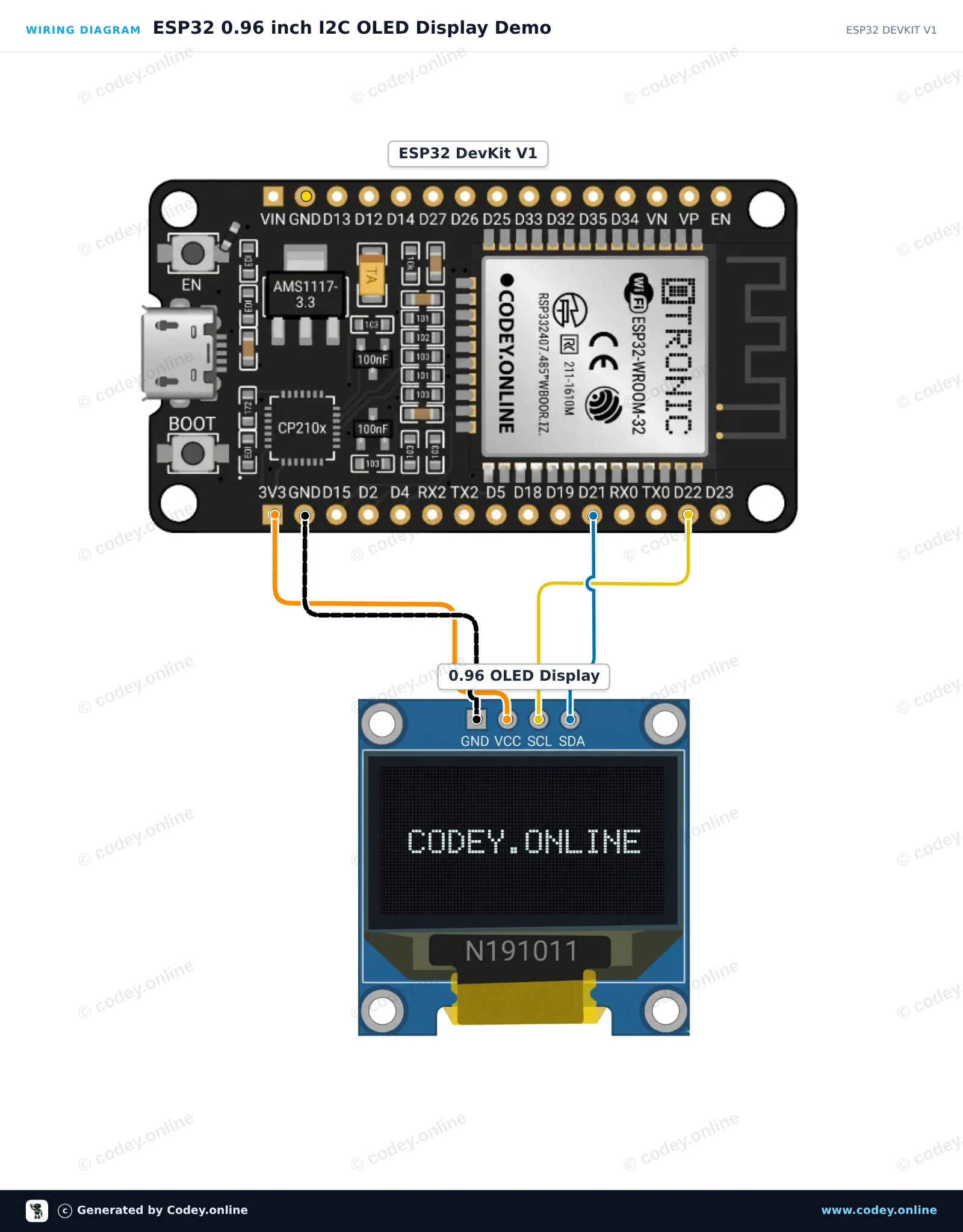

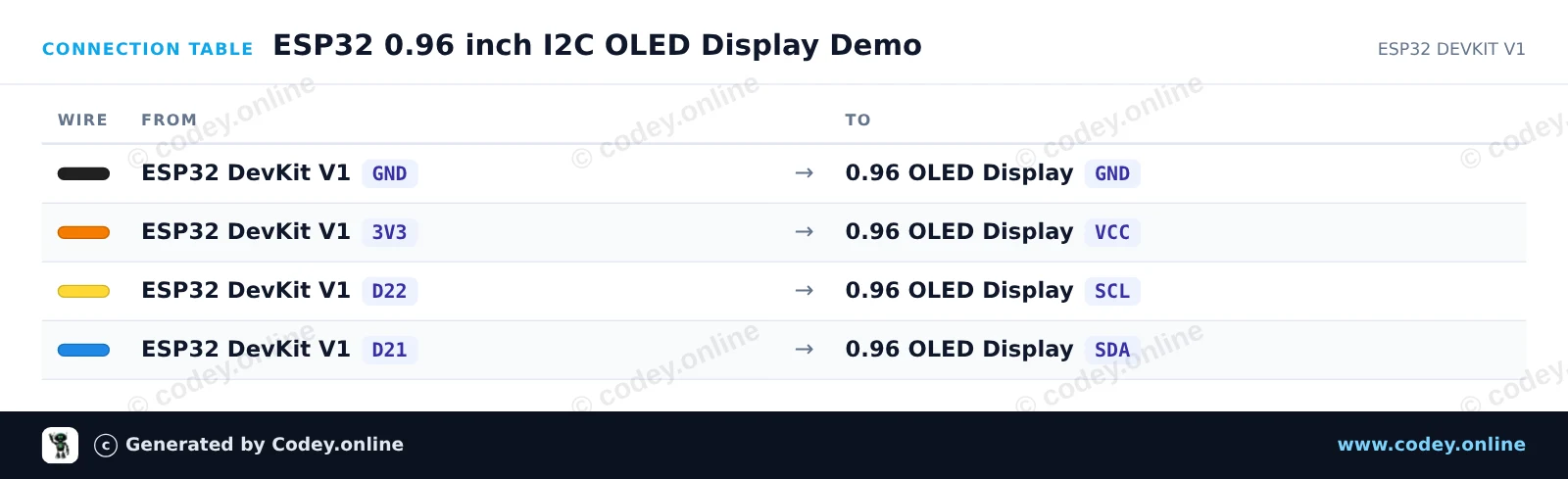

This project demonstrates how to connect a 0.96-inch I2C OLED display to an ESP32. The display initializes using default I2C pins (GPIO 21 for SDA, GPIO 22 for SCL) and shows a greeting text along with an updating live counter.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : ESP32 0.96 inch I2C OLED Display Demo
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : OLED Display 0.96 inch
* Libraries : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
int counter = 0;
void setup() {
Serial.begin(115200);
// Default ESP32 I2C pins: SDA = GPIO 21, SCL = GPIO 22
Wire.begin(21, 22);
if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1306 allocation failed"));
while (true);
}
display.clearDisplay();
display.setTextColor(SSD1306_WHITE);
display.setTextSize(1);
display.setCursor(0, 0);
display.println(F("ESP32 OLED Demo"));
display.display();
delay(1500);
}
void loop() {
display.clearDisplay();
display.setTextSize(1);
display.setCursor(0, 0);
display.println(F("ESP32 + SSD1306"));
display.drawLine(0, 12, display.width(), 12, SSD1306_WHITE);
display.setCursor(0, 20);
display.print(F("Counter: "));
display.setTextSize(2);
display.setCursor(0, 36);
display.print(counter);
display.display();
counter++;
delay(1000);
}
Nödvändiga bibliotek: Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online
