SKU: OT704-C87 Artikelnummer: AB039 EAN: 8029313760373

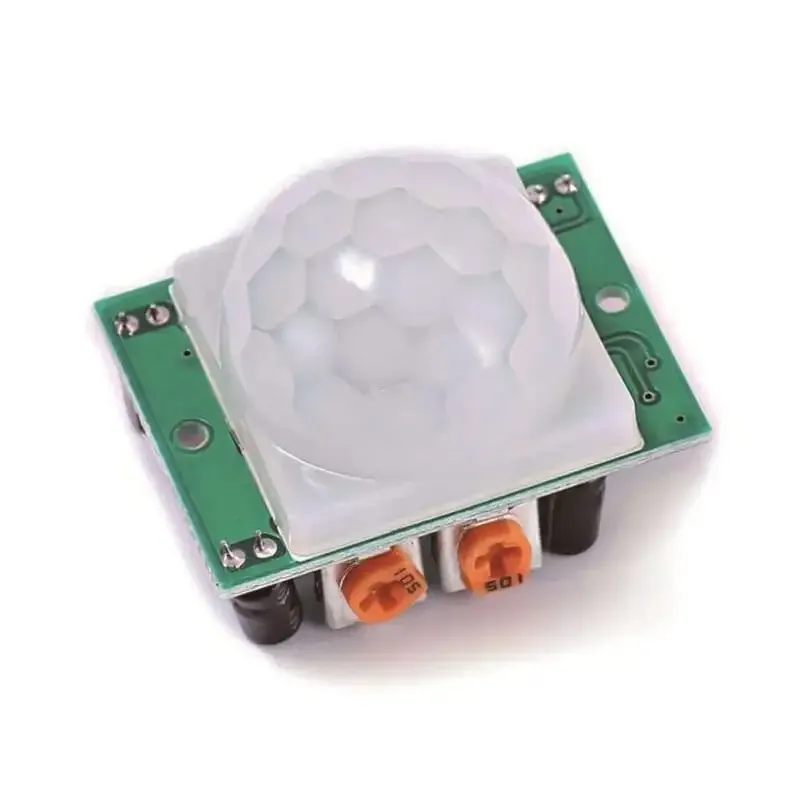

HC-SR501 PIR-rörelsesensor är en infraröd rörelsesensor med följande specifikationer:
– Detekteringsavstånd: 3-7m.
– Fördröjning: 5-200s
– Utspänning: 3.3V
- Fungerar på: 4.5-20V
– Detekteringsvinkel: <140°.
HC-SR501 PIR-rörelsesensor infraröd PIR detekterar rörelse. När rörelse detekteras ger den en 3.3v-signal på utgångspinnen, tiden kan justeras via potentiometern VR1. Detekteringsavståndet kan justeras från 3-7 meter via potentiometern VR2.
Vid uppspelning laddas videon från YouTube.

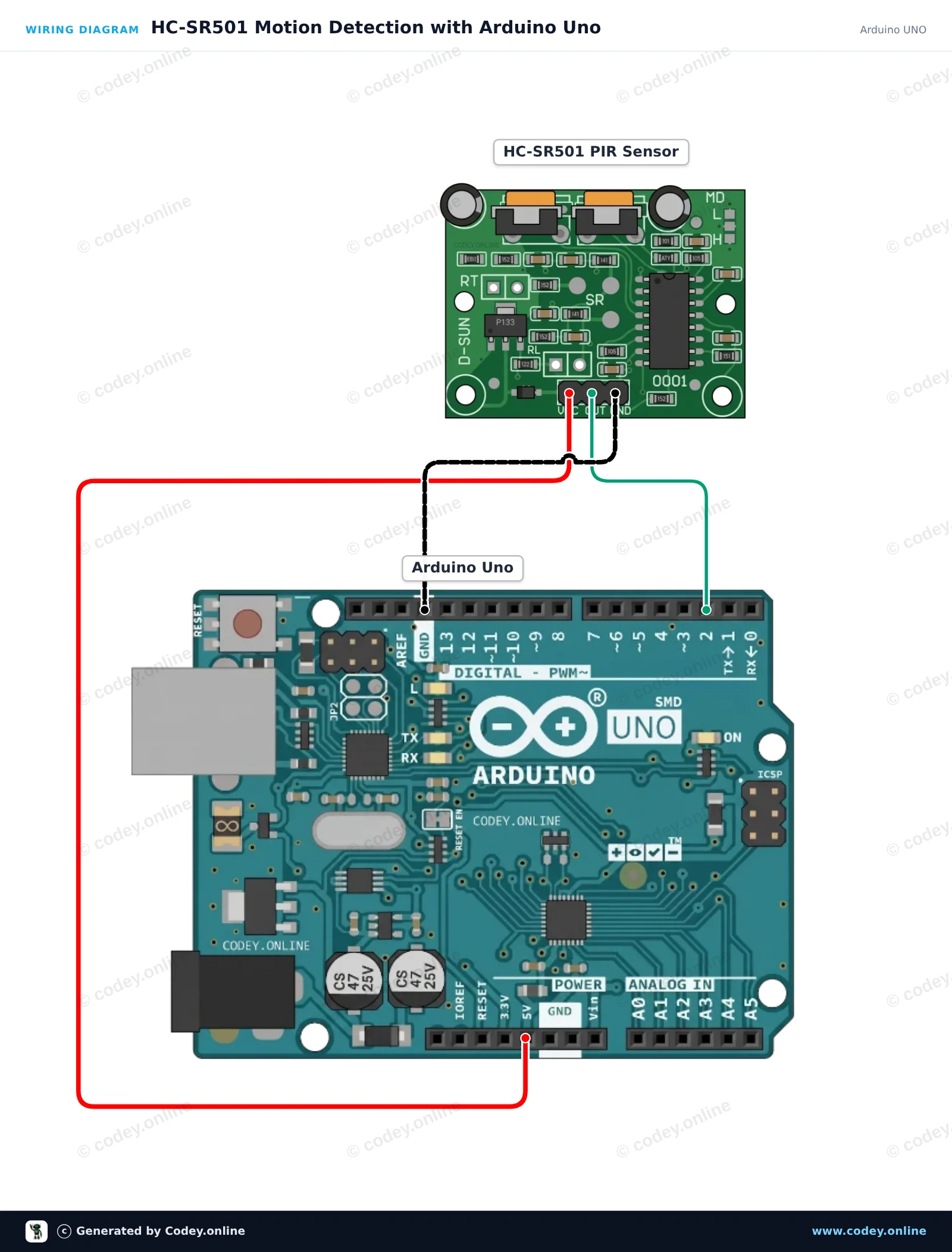

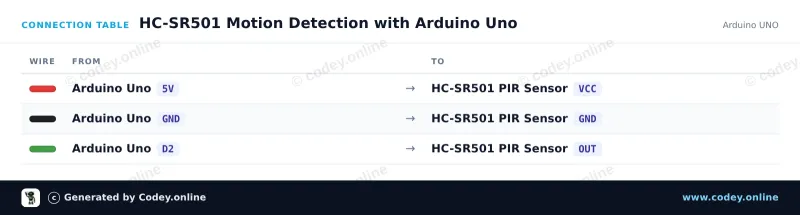

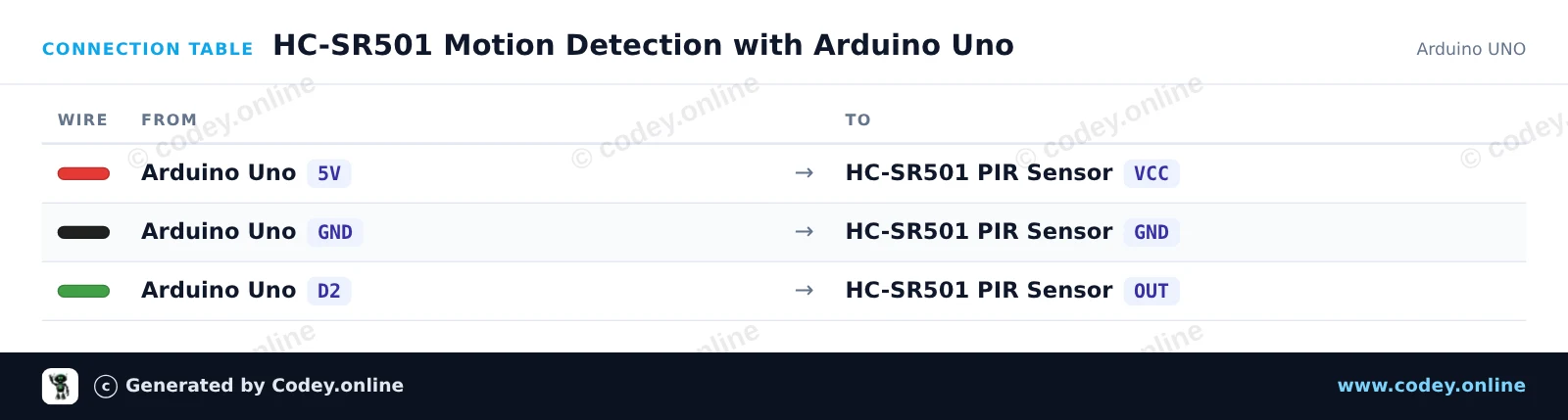

Så här kopplar du PIR-sensor HC-SR501 rörelsesensor till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.
This project detects human motion using the HC-SR501 PIR sensor. When motion is detected, the sensor's output pin goes HIGH, lighting up the onboard LED and printing an alert to the Serial Monitor. Open the Serial Monitor at 115200 baud to view real-time motion status.
English
Nederlands
Frans
Deutsch
Italiano
Español
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : HC-SR501 Motion Detection with Arduino Uno
* Board : Arduino UNO (arduino:avr:uno)
* Parts : HC-SR501 PIR Motion Sensor
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// HC-SR501 PIR Motion Sensor Demo
const int PIR_PIN = 2;
const int LED_PIN = 13;
int lastState = LOW;
void setup() {
pinMode(PIR_PIN, INPUT);
pinMode(LED_PIN, OUTPUT);
Serial.begin(115200);
Serial.println(F("HC-SR501 PIR Motion Sensor Initialized"));
Serial.println(F("Warming up sensor (approx. 30-60 seconds)..."));
}
void loop() {
int motionState = digitalRead(PIR_PIN);
if (motionState != lastState) {
if (motionState == HIGH) {
digitalWrite(LED_PIN, HIGH);
Serial.println(F("Motion detected!"));
} else {
digitalWrite(LED_PIN, LOW);
Serial.println(F("Motion ended."));
}
lastState = motionState;
}
delay(100);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online

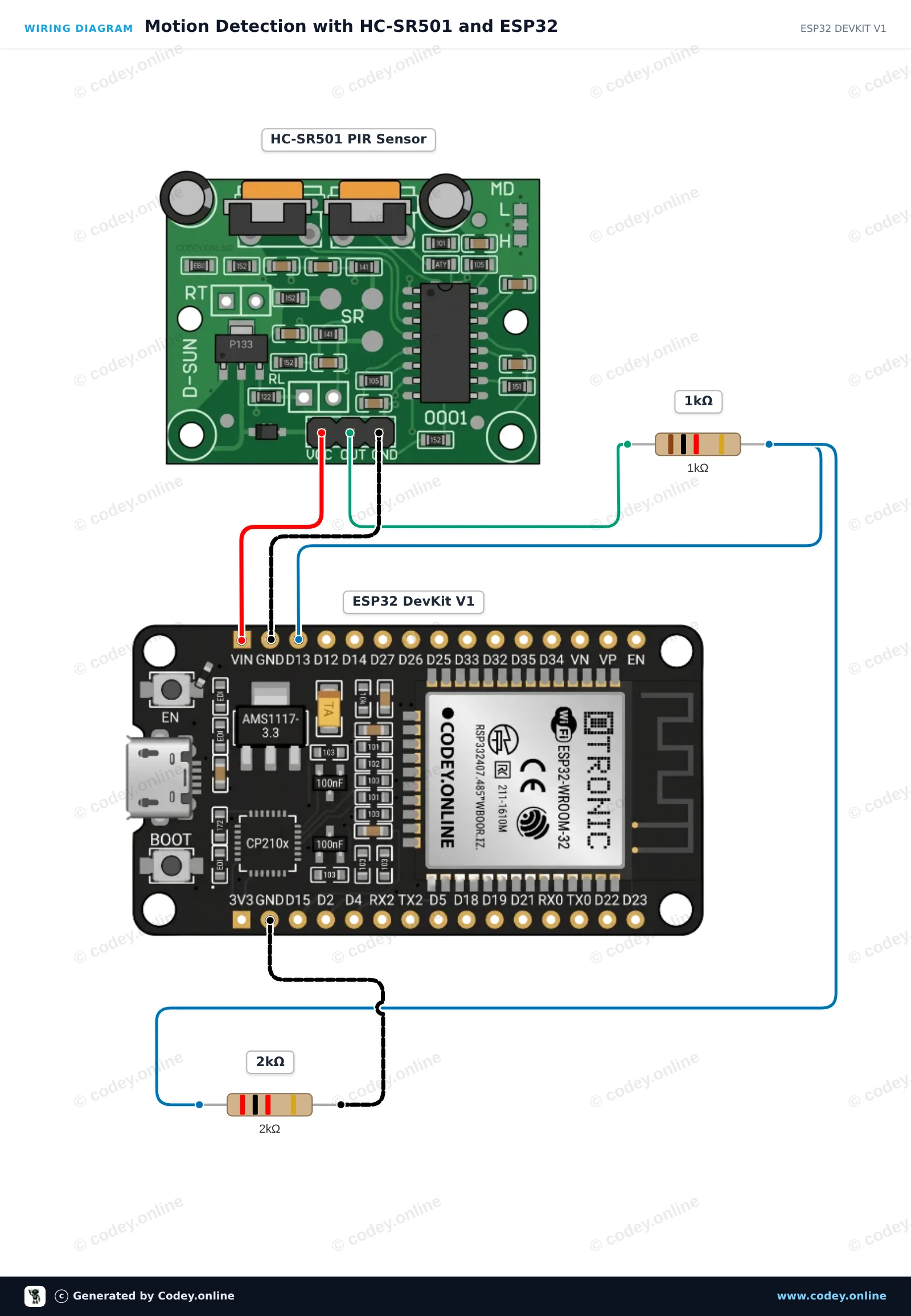

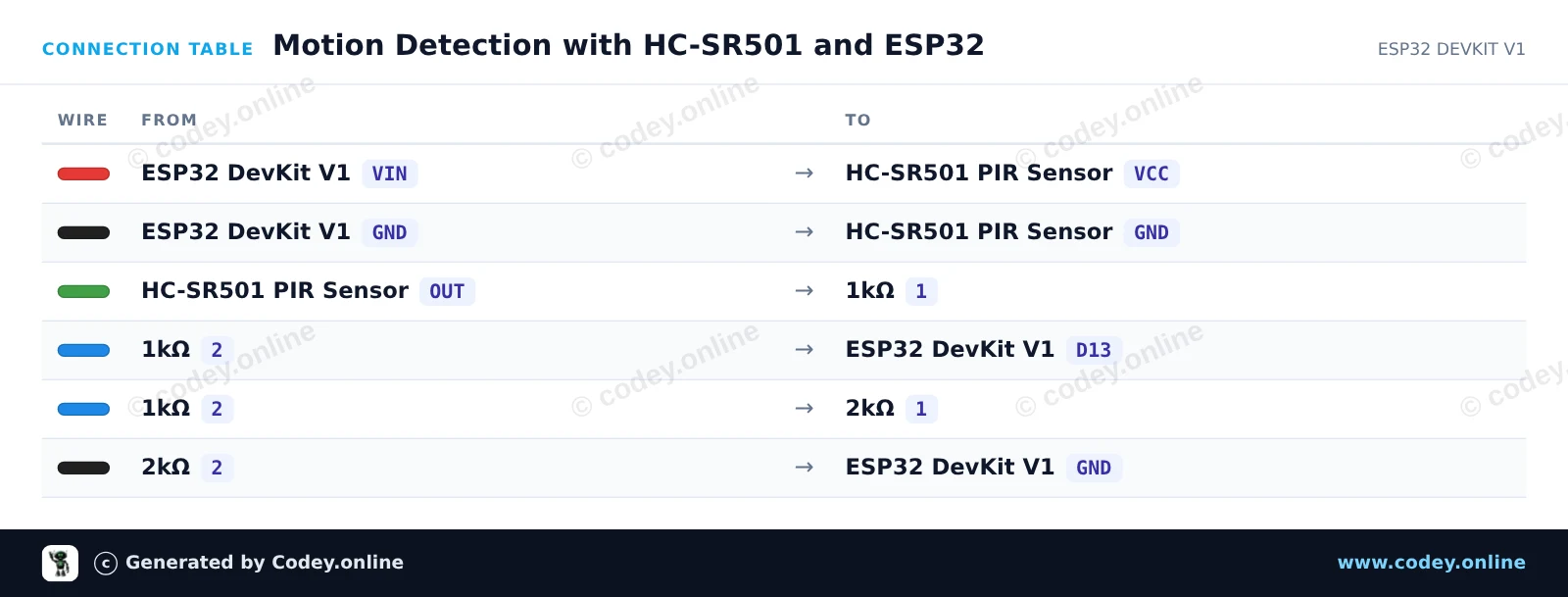

This project detects motion using an HC-SR501 PIR sensor. The sensor is powered from the 5V VIN pin, and a 1kΩ/2kΩ resistor voltage divider safely interfaces the sensor output with the ESP32 3.3V input. When motion is detected, the onboard LED illuminates and a notification is sent to the Serial Monitor.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : Motion Detection with HC-SR501 and ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : HC-SR501 PIR Motion Sensor
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// HC-SR501 PIR Motion Sensor Demo
const int PIR_PIN = 13; // Connected to HC-SR501 OUT via divider
const int LED_PIN = 2; // Onboard LED
int lastState = LOW;
void setup() {
Serial.begin(115200);
pinMode(PIR_PIN, INPUT);
pinMode(LED_PIN, OUTPUT);
Serial.println("HC-SR501 Sensor warming up (approx. 30-60s)...");
delay(2000);
Serial.println("Ready to detect motion.");
}
void loop() {
int motion = digitalRead(PIR_PIN);
if (motion != lastState) {
if (motion == HIGH) {
digitalWrite(LED_PIN, HIGH);
Serial.println("Motion detected!");
} else {
digitalWrite(LED_PIN, LOW);
Serial.println("Motion ended.");
}
lastState = motion;
}
delay(50);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online
