SKU: OT6683 Artikelnummer: XR792 EAN: 8720828223475

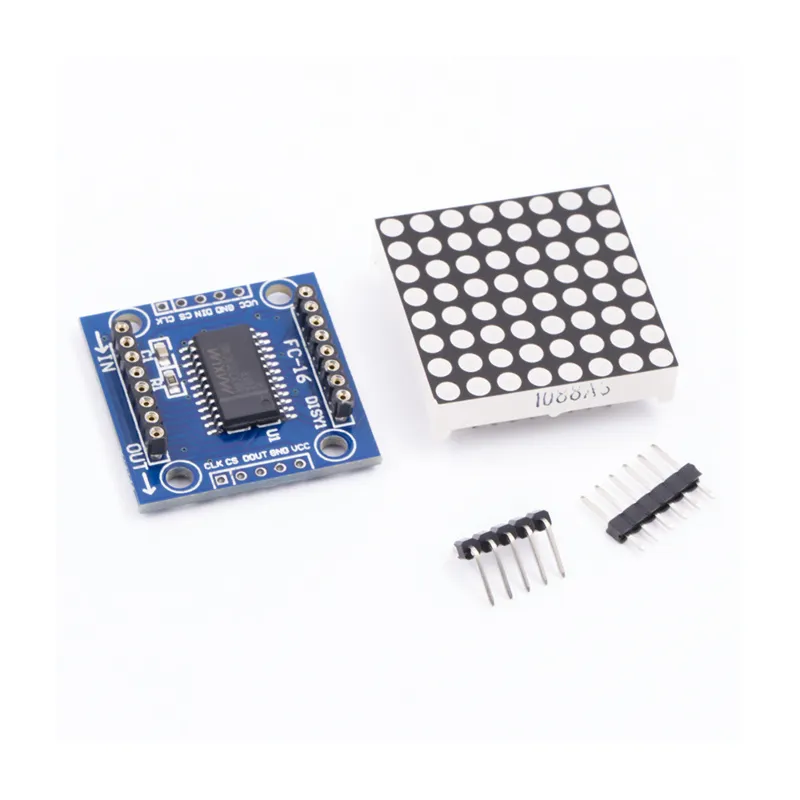

MAX7219 är ett IC som används för att styra LED-paneler med gemensam katod, 7-segmentsdisplayer och nivåindikatorer som kommunicerar via SPI-gränssnittet. Detta kort har en 8x8 dot matrix LED-display. Flera moduler kan kedjekopplas med hjälp av header-anslutningar.
Specifikationer:

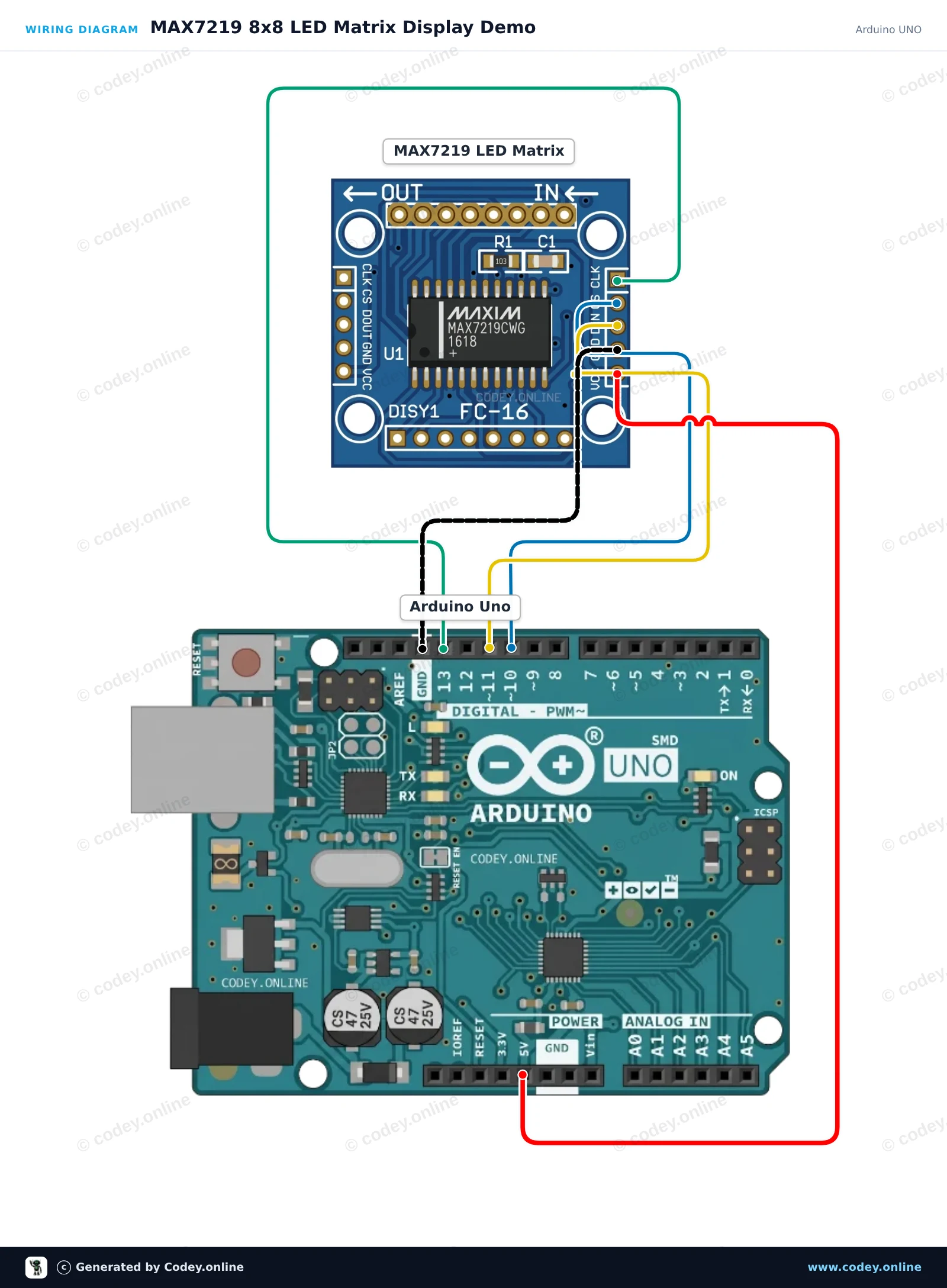

Så här kopplar du LED-matrismodul MAX7219 Blå till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.
This project demonstrates how to control an 8x8 LED matrix using the MAX7219 driver chip. The sketch wakes up the matrix, sets a comfortable brightness level, and animates a bouncing dot across all rows and columns.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 8x8 LED Matrix Display Demo
* Board : Arduino UNO (arduino:avr:uno)
* Parts : LED Matrix Module MAX7219
* Libraries : LedControl 1.0.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <LedControl.h>

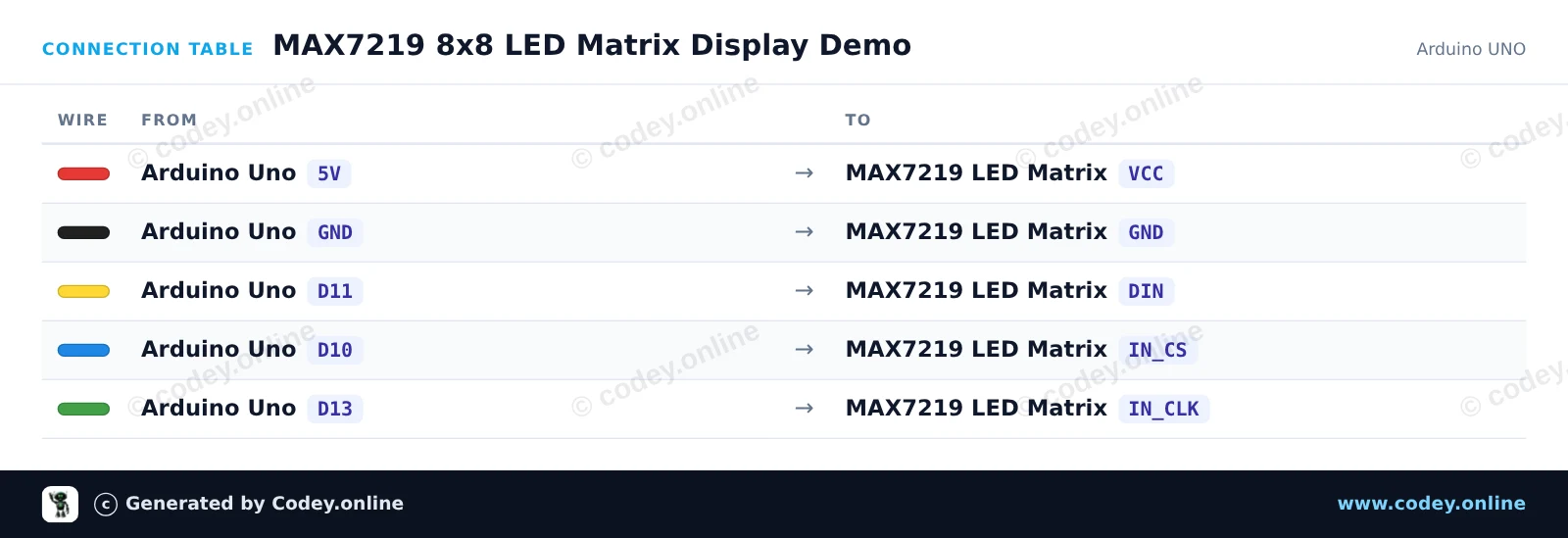

const int DIN_PIN = 11;
const int CLK_PIN = 13;
const int CS_PIN = 10;
// Create LedControl instance: LedControl(DIN, CLK, CS, number_of_matrices)
LedControl lc = LedControl(DIN_PIN, CLK_PIN, CS_PIN, 1);
// 8x8 bitmap for a smile icon
const byte SMILE[8] = {
B00111100,
B01000010,
B10100101,
B10000001,
B10100101,
B10011001,
B01000010,
B00111100
};
// 8x8 bitmap for a heart icon
const byte HEART[8] = {
B00000000,
B01100110,
B11111111,
B11111111,
B01111110,
B00111100,
B00011000,
B00000000
};
void drawBitmap(const byte bitmap[]) {
for (int row = 0; row < 8; row++) {
lc.setRow(0, row, bitmap[row]);
}
}
void setup() {
Serial.begin(115200);
// Wake up MAX7219 from power-saving mode
lc.shutdown(0, false);
// Set medium brightness (0 to 15)
lc.setIntensity(0, 6);
// Clear the display
lc.clearDisplay(0);
Serial.println(F("MAX7219 Matrix initialized!"));
}
void loop() {
// Display Heart
drawBitmap(HEART);
delay(1500);
// Display Smile
drawBitmap(SMILE);
delay(1500);
// Pixel sweep effect
lc.clearDisplay(0);
for (int row = 0; row < 8; row++) {
for (int col = 0; col < 8; col++) {
lc.setLed(0, row, col, true);
delay(25);
lc.setLed(0, row, col, false);
}
}
}
Nödvändiga bibliotek: LedControl 1.0.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online

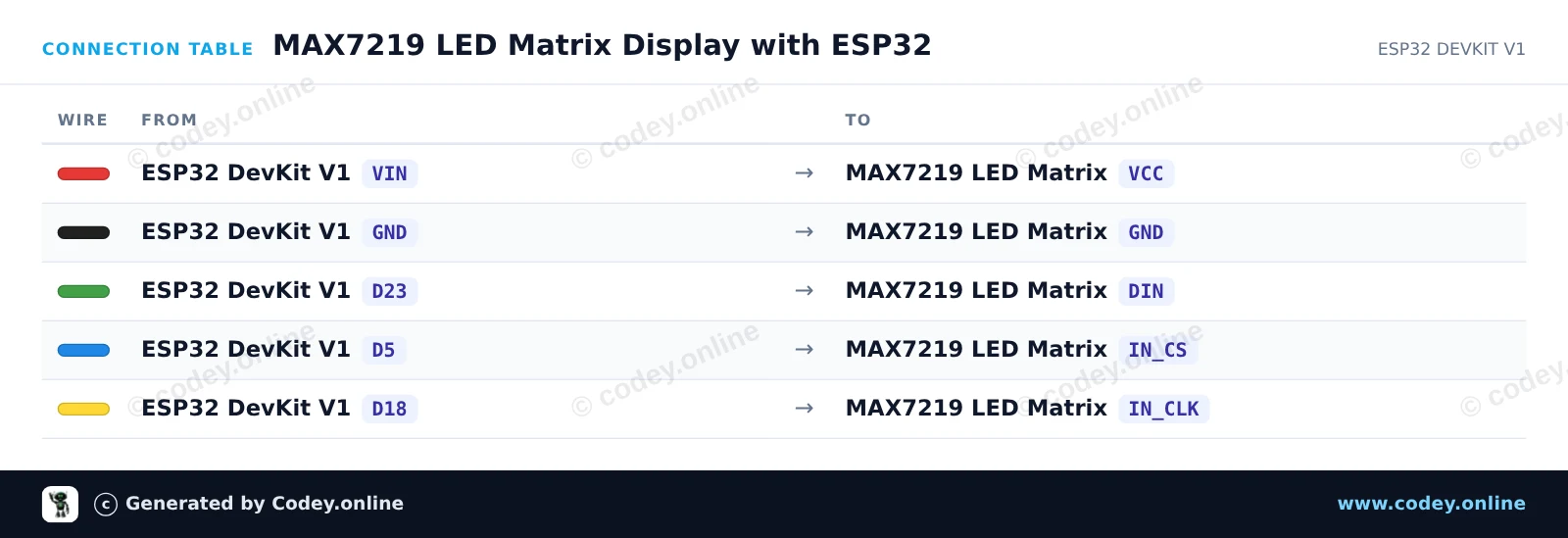

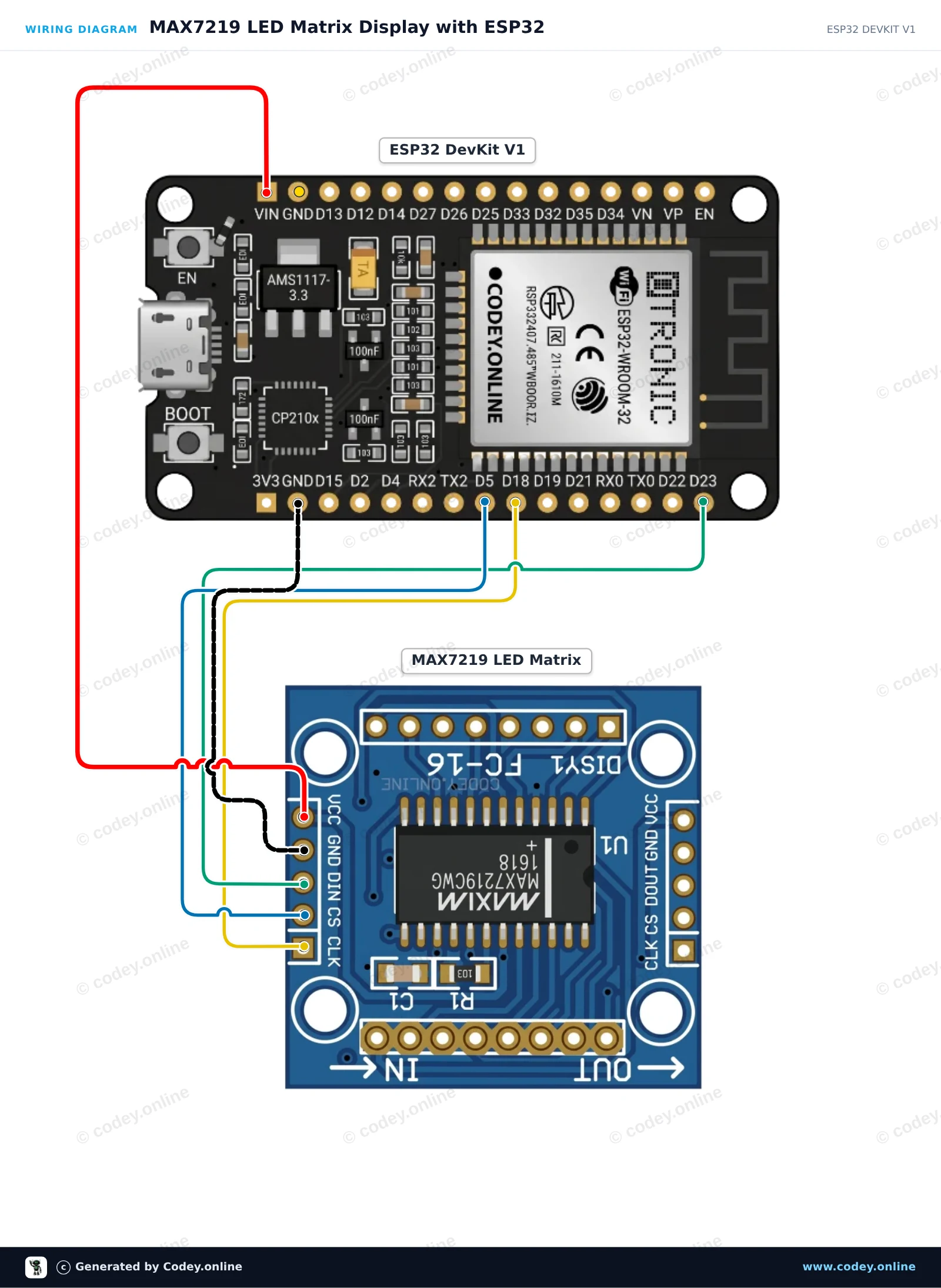

This project displays custom patterns and animations on an 8x8 MAX7219 LED matrix module using hardware SPI. The ESP32 communicates with the driver via GPIO 23 (MOSI/DIN), GPIO 18 (SCK/CLK), and GPIO 5 (CS), powering the display directly from the 5V VIN pin.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 LED Matrix Display with ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : LED Matrix Module MAX7219
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <SPI.h>
const int CS_PIN = 5;
// MAX7219 register addresses
const byte REG_NOOP = 0x00;
const byte REG_DECODE = 0x09;
const byte REG_INTENSITY = 0x0A;
const byte REG_SCANLIMIT = 0x0B;
const byte REG_SHUTDOWN = 0x0C;
const byte REG_DISPTEST = 0x0F;
// Bitmaps for 8x8 graphics
const byte smile[8] = {
0b00111100,
0b01000010,
0b10100101,
0b10000001,
0b10100101,
0b10011001,
0b01000010,
0b00111100
};
const byte heart[8] = {
0b00000000,
0b01100110,
0b11111111,
0b11111111,
0b11111111,
0b01111110,
0b00111100,
0b00011000
};
void writeRegister(byte reg, byte data) {
digitalWrite(CS_PIN, LOW);
SPI.transfer(reg);
SPI.transfer(data);
digitalWrite(CS_PIN, HIGH);
}
void clearDisplay() {
for (byte row = 1; row <= 8; row++) {
writeRegister(row, 0x00);
}
}
void drawBitmap(const byte bitmap[8]) {
for (byte row = 0; row < 8; row++) {
writeRegister(row + 1, bitmap[row]);
}
}
void setup() {
pinMode(CS_PIN, OUTPUT);
digitalWrite(CS_PIN, HIGH);
// Initialize hardware SPI (VSPI: SCK=18, MOSI=23)
SPI.begin();
// Configure MAX7219
writeRegister(REG_DISPTEST, 0x00); // Normal operation
writeRegister(REG_SCANLIMIT, 0x07); // Scan all 8 digits/rows
writeRegister(REG_DECODE, 0x00); // No BCD decoding (raw matrix mode)
writeRegister(REG_INTENSITY, 0x04); // Brightness (0x00 to 0x0F)
writeRegister(REG_SHUTDOWN, 0x01); // Wake up module
clearDisplay();
}
void loop() {
// Display smiley face
drawBitmap(smile);
delay(2000);
// Display heart
drawBitmap(heart);
delay(2000);
// Row sweep animation
clearDisplay();
for (byte i = 1; i <= 8; i++) {
writeRegister(i, 0xFF);
delay(100);
}
for (byte i = 1; i <= 8; i++) {
writeRegister(i, 0x00);
delay(100);
}
}
Wiring diagram and example code generated by Codey.online — https://www.codey.online
