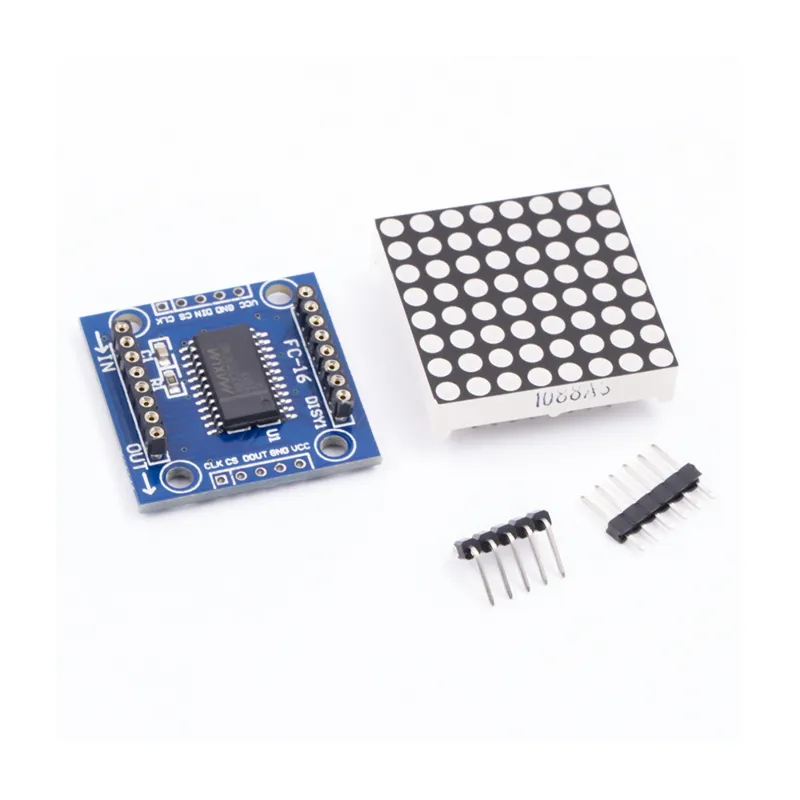

MAX7219 är en IC som används för att styra LED-paneler med gemensam katod, 7-segmentsdisplayer och nivåindikatorer som kommunicerar via SPI-gränssnittet. Detta kort har en 8x8 dot matrix LED-display. Flera moduler kan kedjekopplas med hjälp av header-anslutningar.
Specifikationer:
Så här kopplar du LED-matrismodul MAX7219 Grön till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.

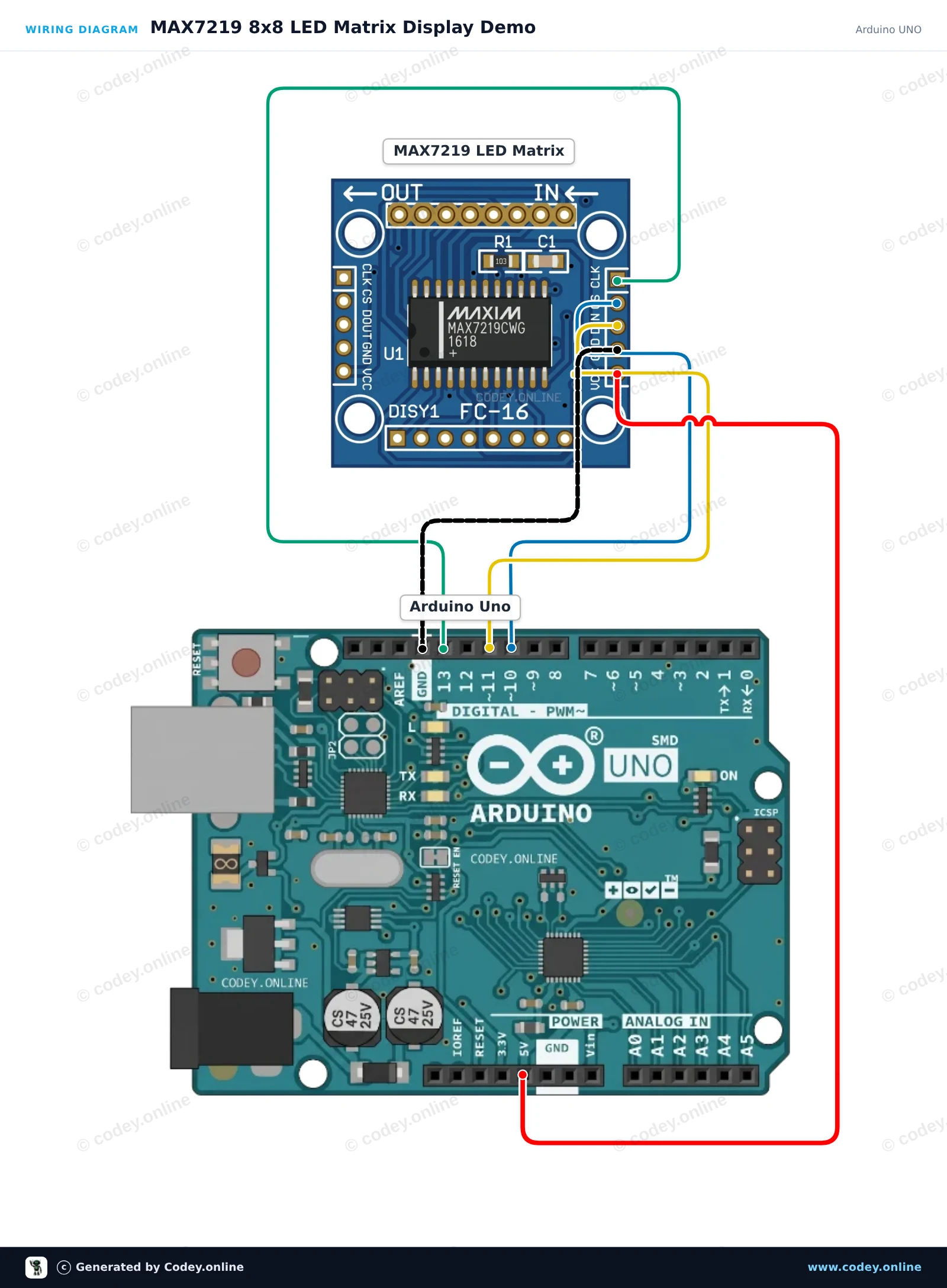

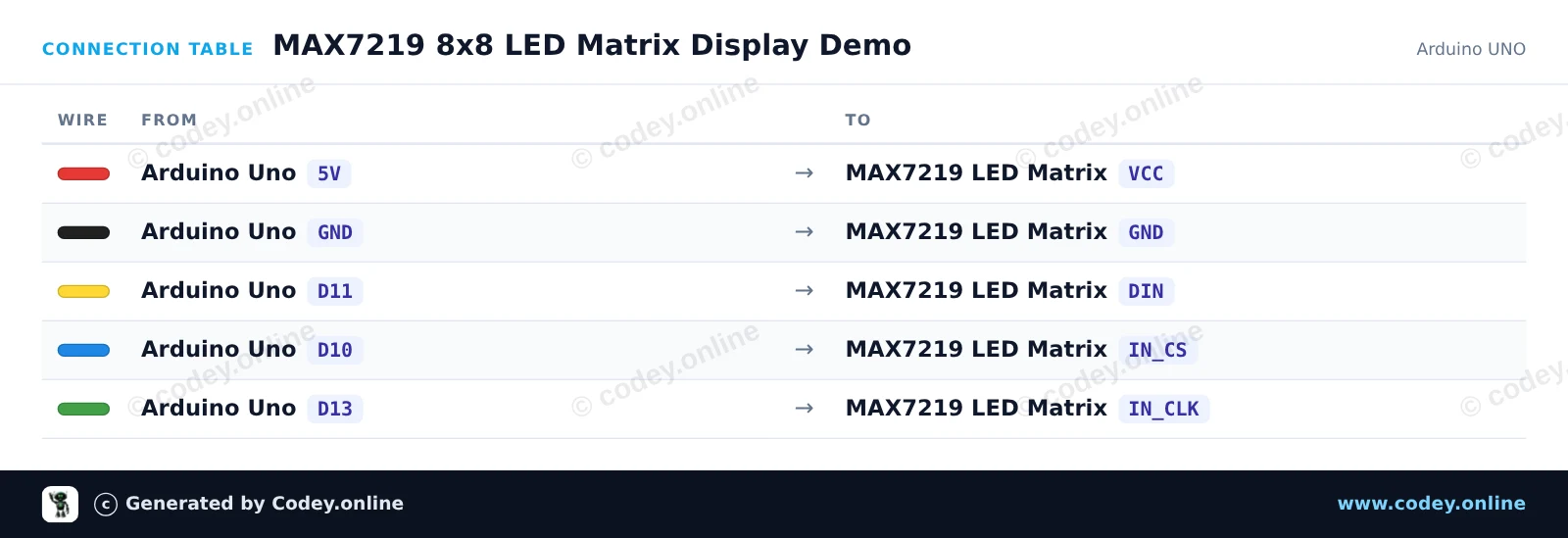

This project demonstrates how to control an 8x8 MAX7219 LED matrix with an Arduino Uno. The sketch initializes the display and cycles through displaying a heart, a smiley face, and an expanding square animation.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 8x8 LED Matrix Display Demo
* Board : Arduino UNO (arduino:avr:uno)
* Parts : LED Matrix Module MAX7219
* Libraries : LedControl 1.0.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <LedControl.h>
const int DIN_PIN = 11;
const int CS_PIN = 10;
const int CLK_PIN = 13;
LedControl lc = LedControl(DIN_PIN, CLK_PIN, CS_PIN, 1);
const byte HEART[8] = {
B00000000,
B01100110,
B11111111,
B11111111,
B11111111,
B01111110,
B00111100,
B00011000
};
const byte SMILE[8] = {
B00111100,
B01000010,
B10100101,
B10000001,
B10100101,
B10011001,
B01000010,
B00111100
};
void displayPattern(const byte pattern[8]) {
for (int row = 0; row < 8; row++) {
lc.setRow(0, row, pattern[row]);
}
}
void setup() {
Serial.begin(115200);
Serial.println(F("MAX7219 LED Matrix Demo"));
lc.shutdown(0, false); // Wake up display
lc.setIntensity(0, 8); // Set brightness (0-15)
lc.clearDisplay(0);
}
void loop() {
// Show Heart
displayPattern(HEART);
delay(1500);
// Show Smile
displayPattern(SMILE);
delay(1500);
// Dot scan animation
lc.clearDisplay(0);
for (int row = 0; row < 8; row++) {
for (int col = 0; col < 8; col++) {
lc.setLed(0, row, col, true);
delay(20);
}
}
delay(500);
lc.clearDisplay(0);
delay(300);
}
Nödvändiga bibliotek: LedControl 1.0.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online

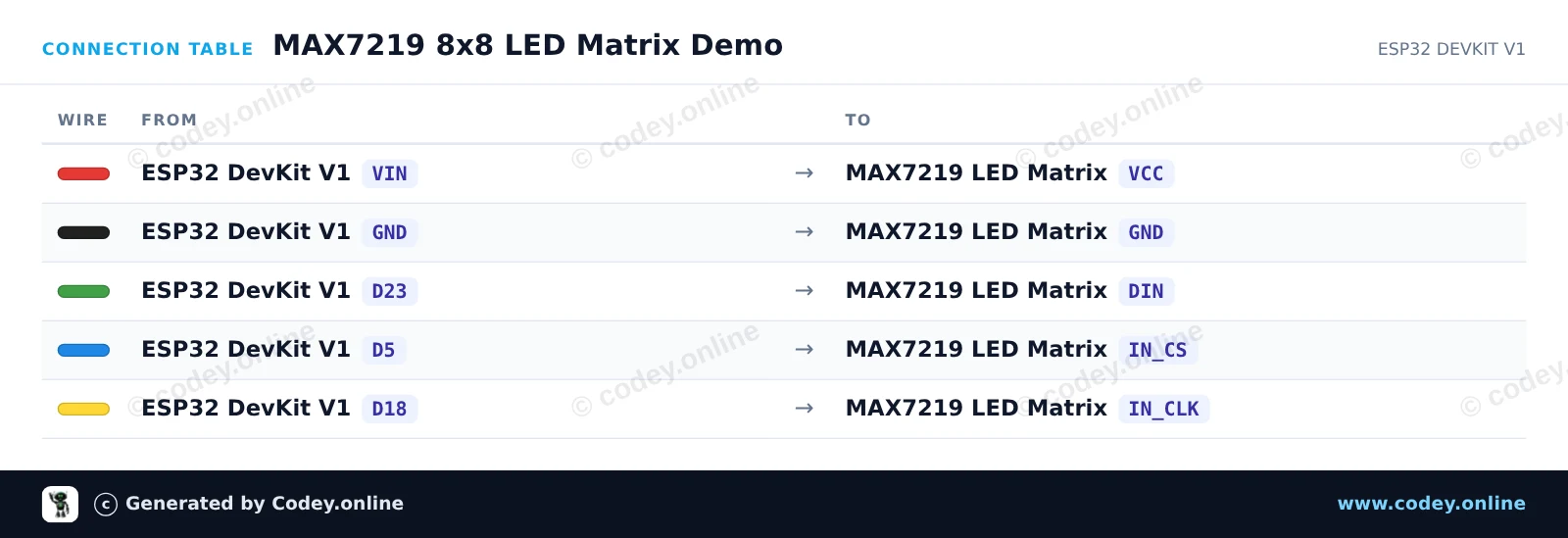

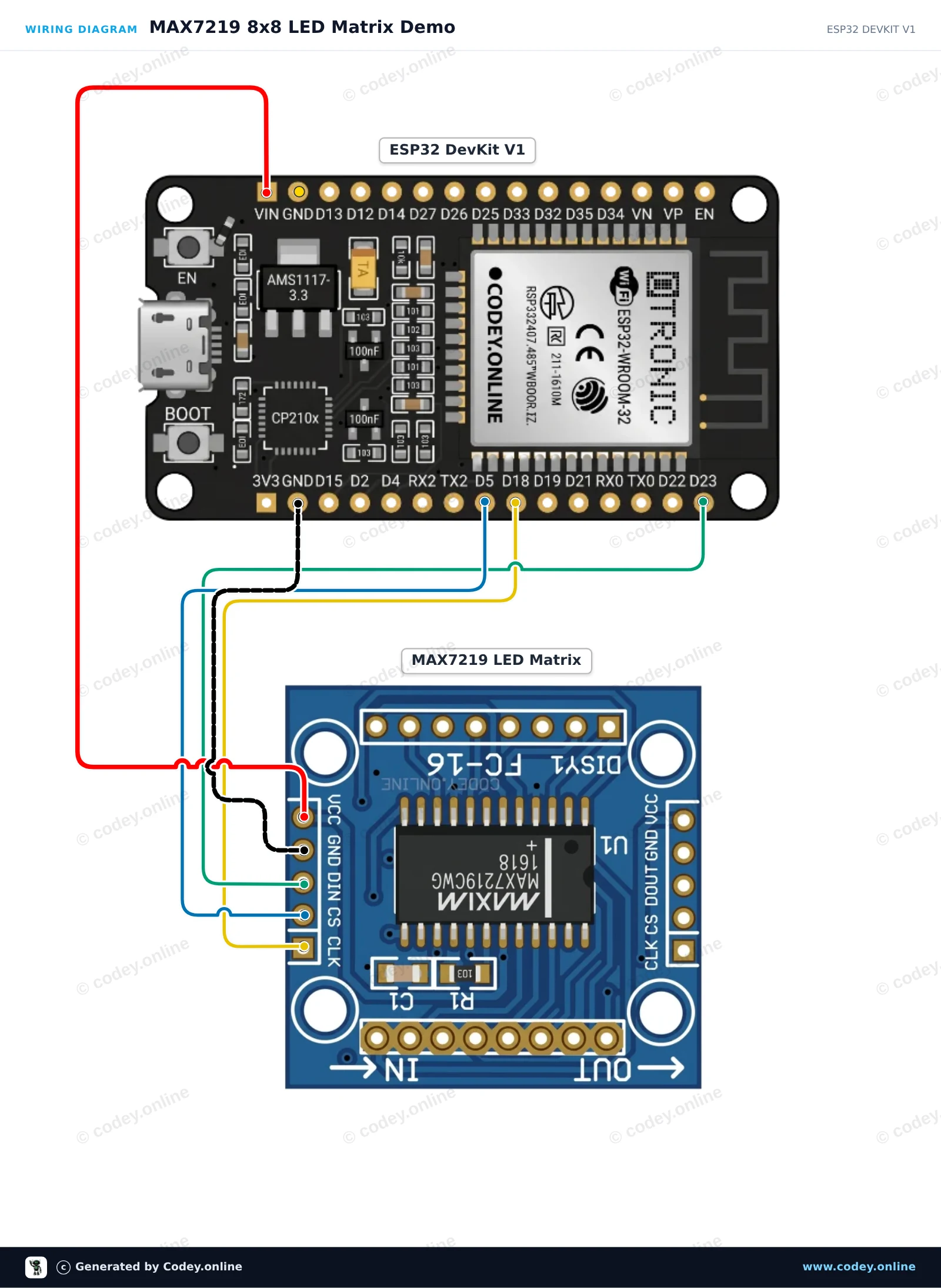

This project uses the ESP32's hardware SPI interface to control an 8x8 MAX7219 LED matrix without requiring external libraries. The sketch initializes the display and cycles between displaying a smiley face, a heart icon, and a row-scanning animation.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 8x8 LED Matrix Demo
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : LED Matrix Module MAX7219
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <SPI.h>
const int CS_PIN = 5;
// MAX7219 register addresses
const byte REG_NOOP = 0x00;
const byte REG_DIGIT0 = 0x01;
const byte REG_DECODE = 0x09;
const byte REG_INTEN = 0x0A;
const byte REG_SCAN = 0x0B;
const byte REG_SHUT = 0x0C;
const byte REG_TEST = 0x0F;
// 8x8 Bitmaps
const byte SMILE[8] = {
0b00111100,
0b01000010,
0b10100101,
0b10000001,
0b10100101,
0b10011001,
0b01000010,
0b00111100
};
const byte HEART[8] = {
0b00000000,
0b01100110,
0b11111111,
0b11111111,
0b11111111,
0b01111110,
0b00111100,
0b00011000
};
void max7219Send(byte reg, byte data) {
digitalWrite(CS_PIN, LOW);
SPI.transfer(reg);
SPI.transfer(data);
digitalWrite(CS_PIN, HIGH);
}
void clearDisplay() {
for (byte i = 1; i <= 8; i++) {
max7219Send(i, 0x00);
}
}
void displayBitmap(const byte bitmap[8]) {
for (byte i = 0; i < 8; i++) {
max7219Send(i + 1, bitmap[i]);
}
}
void setup() {
Serial.begin(115200);
pinMode(CS_PIN, OUTPUT);
digitalWrite(CS_PIN, HIGH);
// Initialize hardware SPI (SCK=18, MISO=19, MOSI=23, SS=5)
SPI.begin(18, 19, 23, CS_PIN);
// Configure MAX7219 registers
max7219Send(REG_TEST, 0x00); // Normal operation (display test off)
max7219Send(REG_SCAN, 0x07); // Scan all 8 digits/rows
max7219Send(REG_DECODE, 0x00); // Raw matrix mode (no BCD decoding)
max7219Send(REG_INTEN, 0x04); // Medium brightness (0x00 to 0x0F)
max7219Send(REG_SHUT, 0x01); // Normal operation (wake up)
clearDisplay();
Serial.println("MAX7219 LED Matrix ready!");
}
void loop() {
// Show Smiley Face
displayBitmap(SMILE);
delay(2000);
// Show Heart Icon
displayBitmap(HEART);
delay(2000);
// Row scan animation
clearDisplay();
for (byte r = 1; r <= 8; r++) {
max7219Send(r, 0xFF);
delay(100);
max7219Send(r, 0x00);
}
}
Wiring diagram and example code generated by Codey.online — https://www.codey.online
