SKU: OT961-C105 Artikelnummer: YP924 EAN: 4639867568390
Söktermer: relä 5v, 5v relä, relay 5v, 5v relay, relä hög, relä high, relay high, blått relä, relä blått, relä 250v, relä 220v, relä för arduino, arduino relä, relä breadboard
Mått
Längd: 3,3cm
Bredd: 2,6cm
Höjd: 1,7cm

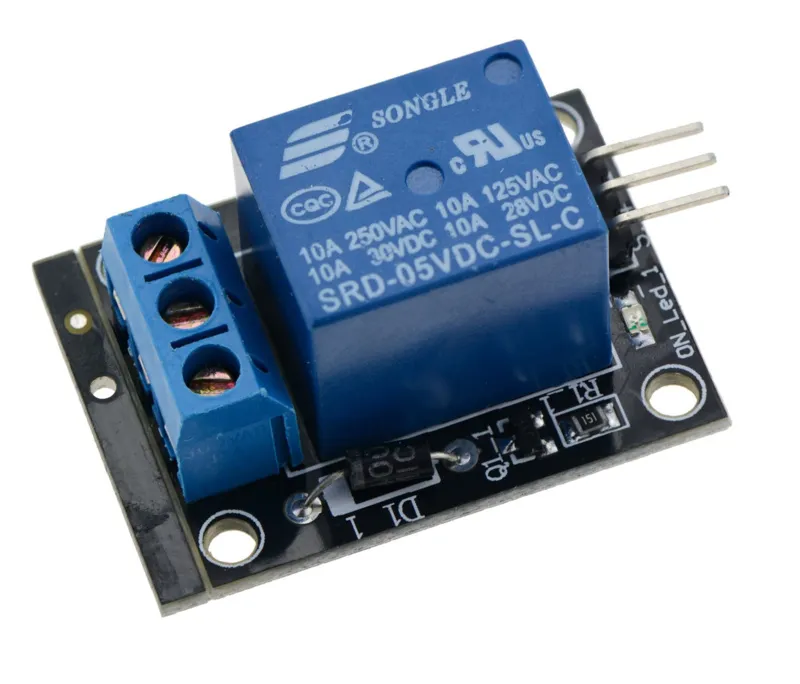

Så här kopplar du Relämodul 5v för Arduino till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.

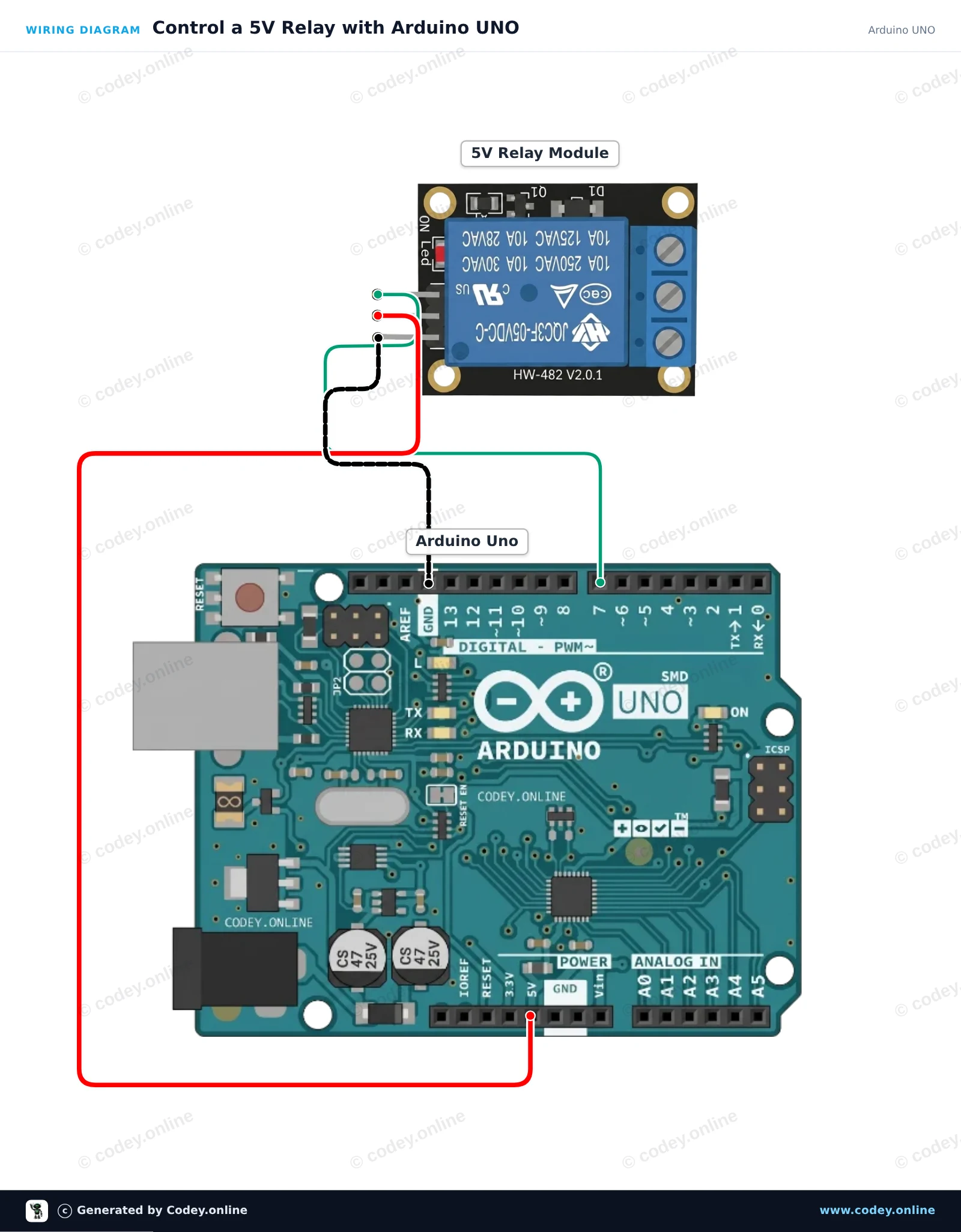

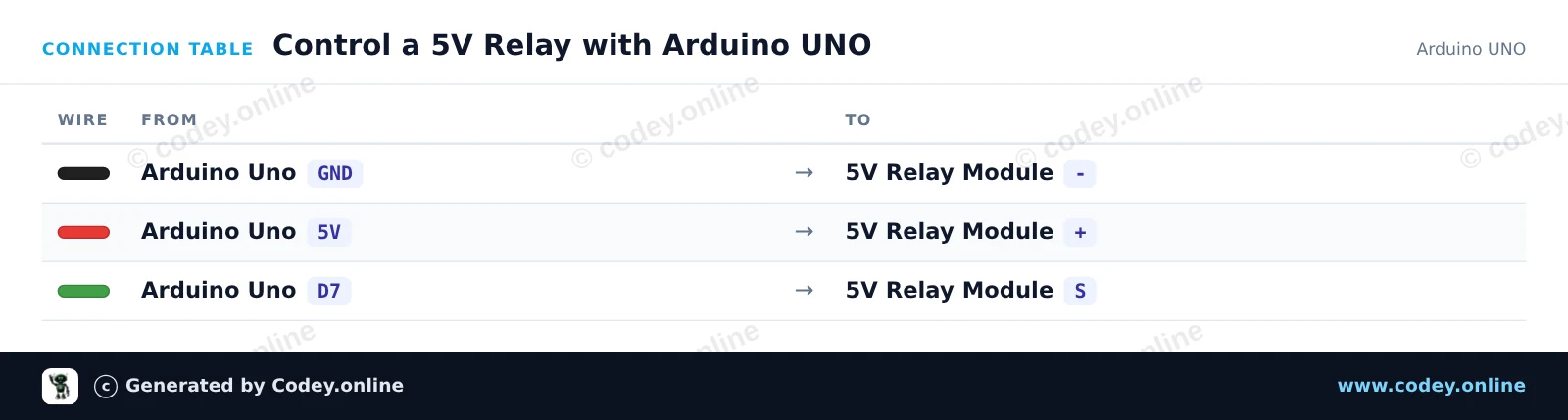

This project demonstrates how to control a 5V relay module with an Arduino UNO. The sketch toggles the relay ON and OFF every two seconds while printing the status to the Serial Monitor. You will hear an audible click from the relay each time it switches state.
English
Nederlands
Frans
Deutsch
Italiano
Español
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : Control a 5V Relay with Arduino UNO
* Board : Arduino UNO (arduino:avr:uno)
* Parts : Relay Module 5V
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// 5V Relay Module Example
const int RELAY_PIN = 7;
void setup() {
pinMode(RELAY_PIN, OUTPUT);
Serial.begin(115200);
Serial.println(F("Relay module demo started."));
}
void loop() {
// Turn relay ON
digitalWrite(RELAY_PIN, HIGH);
Serial.println(F("Relay: ON"));
delay(2000);
// Turn relay OFF
digitalWrite(RELAY_PIN, LOW);
Serial.println(F("Relay: OFF"));
delay(2000);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online

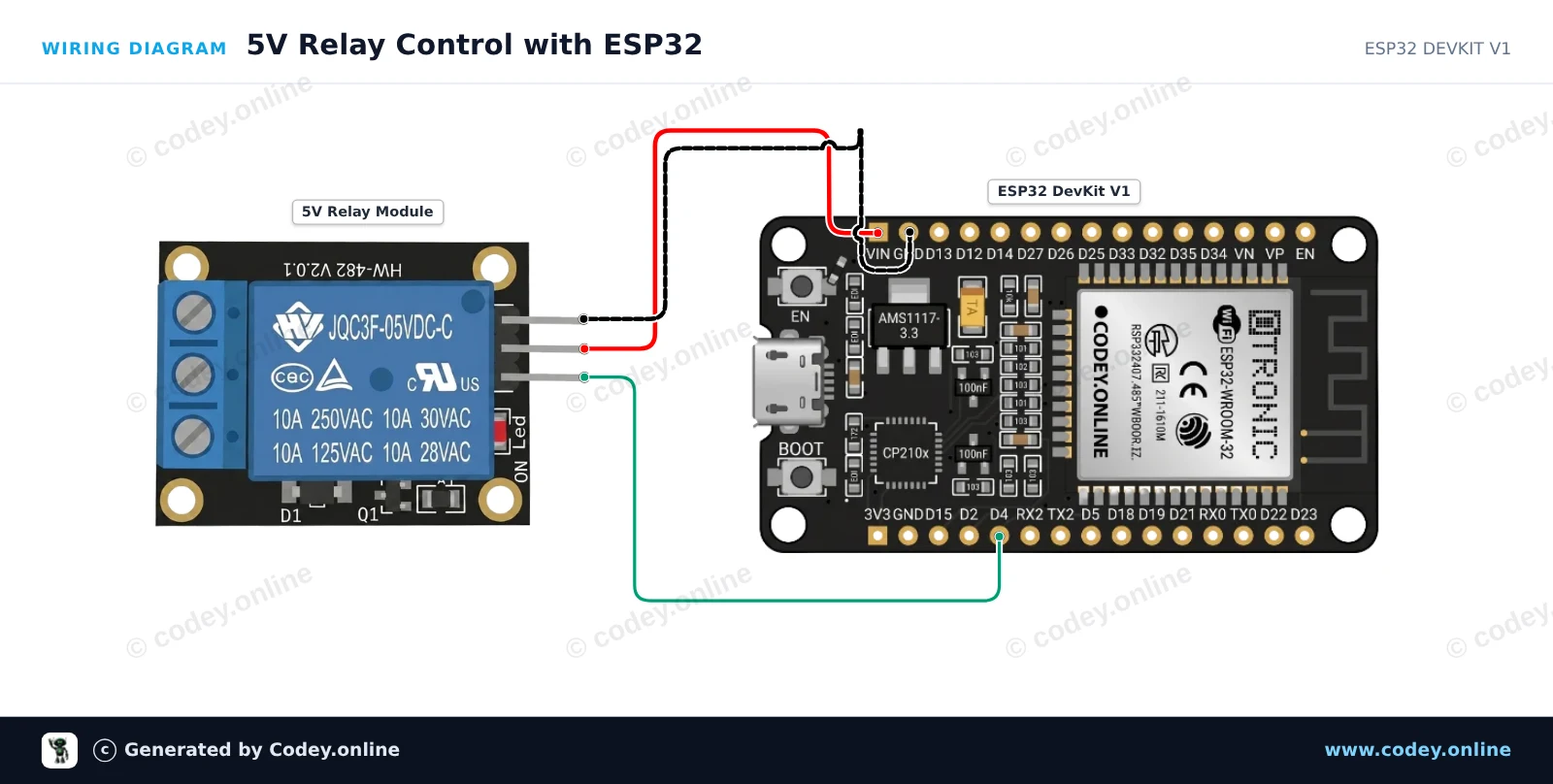

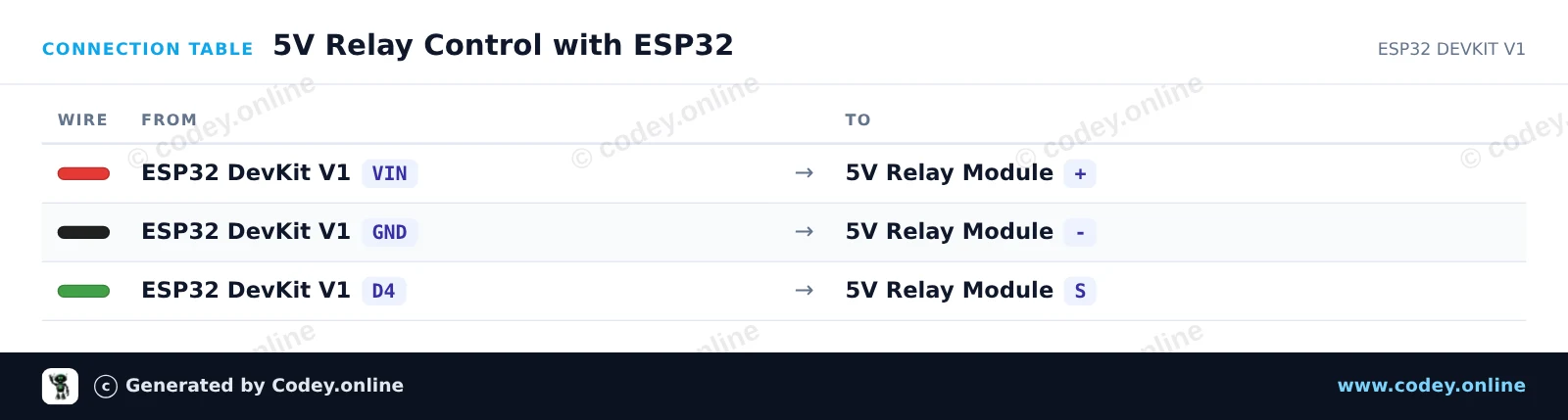

This project demonstrates how to control a 5V relay module using an ESP32. The relay switches ON and OFF every two seconds while printing its status to the Serial Monitor. The relay is powered directly from the ESP32 VIN pin (5V from USB) and triggered via GPIO 4.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 5V Relay Control with ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : Relay Module 5V
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// 5V Relay Control Example for ESP32
const int RELAY_PIN = 4;
void setup() {
Serial.begin(115200);
pinMode(RELAY_PIN, OUTPUT);
digitalWrite(RELAY_PIN, LOW);
Serial.println("Relay control initialized.");
}
void loop() {
// Turn relay ON (Active HIGH for standard modules)
Serial.println("Relay: ON");
digitalWrite(RELAY_PIN, HIGH);
delay(2000);
// Turn relay OFF
Serial.println("Relay: OFF");
digitalWrite(RELAY_PIN, LOW);
delay(2000);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online
