SKU: OT2043-A54 Artikelnummer: AB072 EAN: 4577243565130
Infraröd hinderundvikningsmodul.
Ger en 5V-signal när det inte finns några hinder och en 0V-signal när det finns ett hinder och den gröna LED:n tänds. Avståndet kan justeras med en potentiometer. Fungerar med 3.3V och 5V, har en röd power-LED.
Mäter avstånd till hinder på ett avstånd av 2-30cm och 35 grader med hjälp av infraröda signaler. Innehåller en infraröd sändare och mottagare.
Mått
Längd: 4,5cm
Bredd: 1,4cm
Höjd: 0,9cm

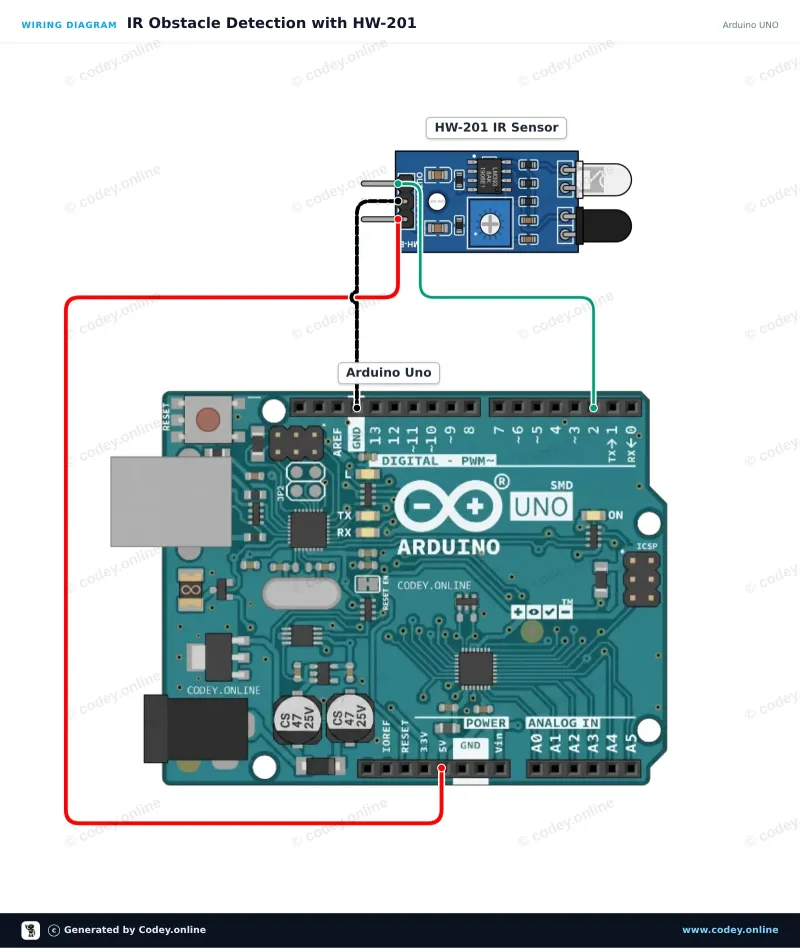

Så här kopplar du Infraröd hinderundvikningsmodul HW-201 till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.

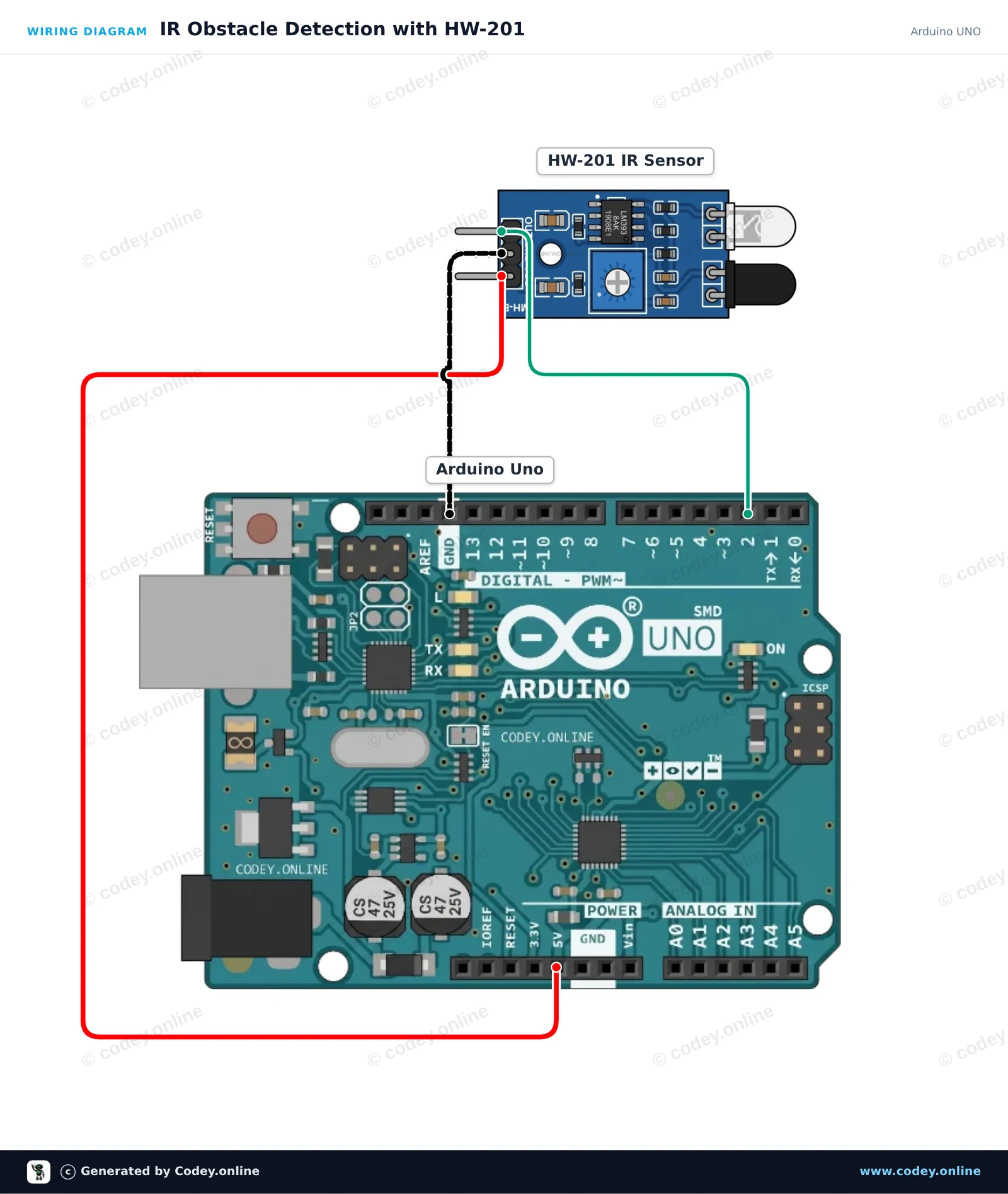

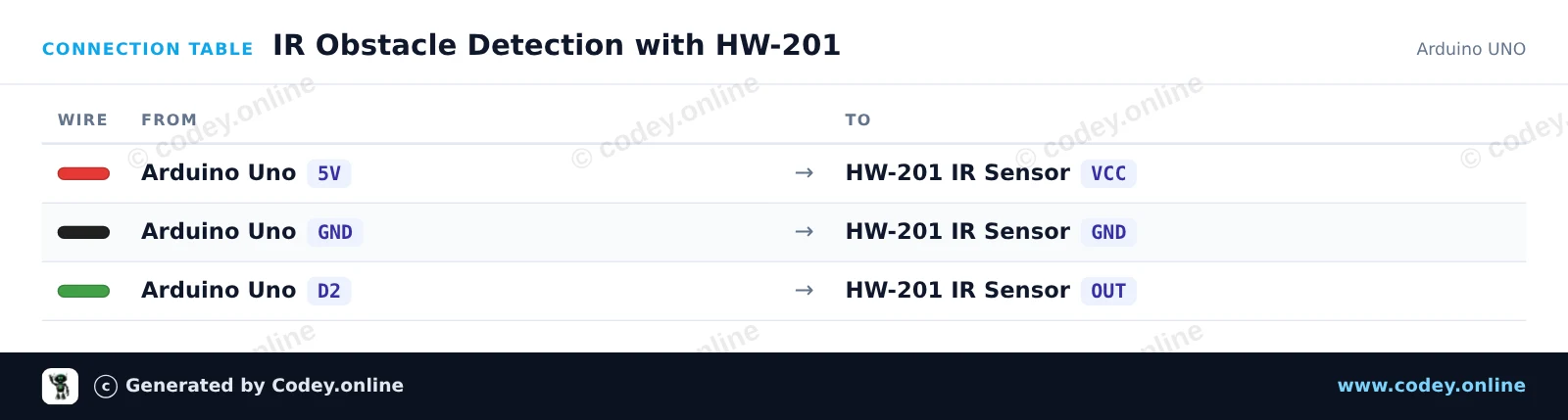

This project uses an HW-201 infrared obstacle avoidance sensor to detect nearby objects. When an obstacle comes into range, the sensor's digital output goes LOW, turning on the Arduino's built-in LED and printing detection alerts to the Serial Monitor. Adjust the onboard potentiometer on the sensor module to calibrate the detection distance.
English
Nederlands
Frans
Deutsch
Italiano
Español
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : IR Obstacle Detection with HW-201
* Board : Arduino UNO (arduino:avr:uno)
* Parts : HW-201 Infrared Obstacle Avoidance Module
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// Pin definitions
const int sensorPin = 2;
const int ledPin = 13;
void setup() {
pinMode(sensorPin, INPUT);
pinMode(ledPin, OUTPUT);
Serial.begin(115200);
Serial.println(F("HW-201 IR Obstacle Sensor Demo"));
Serial.println(F("Ready: Move an object in front of the sensor."));
}
void loop() {
// The HW-201 sensor outputs LOW when an obstacle is detected
int sensorState = digitalRead(sensorPin);
if (sensorState == LOW) {
digitalWrite(ledPin, HIGH);
Serial.println(F("Obstacle Detected!"));
} else {
digitalWrite(ledPin, LOW);
Serial.println(F("Clear (no obstacle)"));
}
delay(200);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online

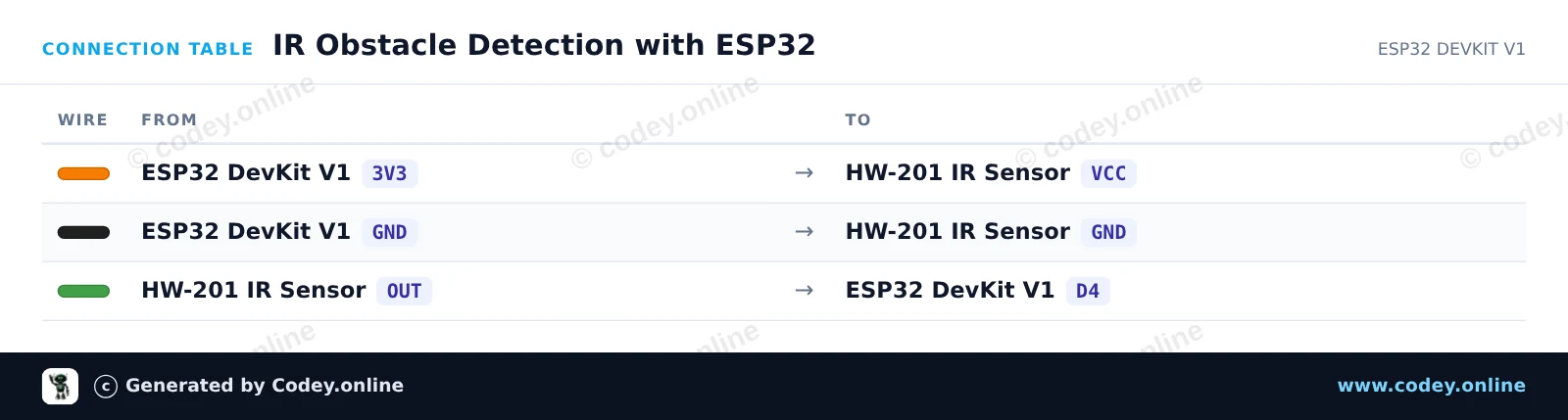

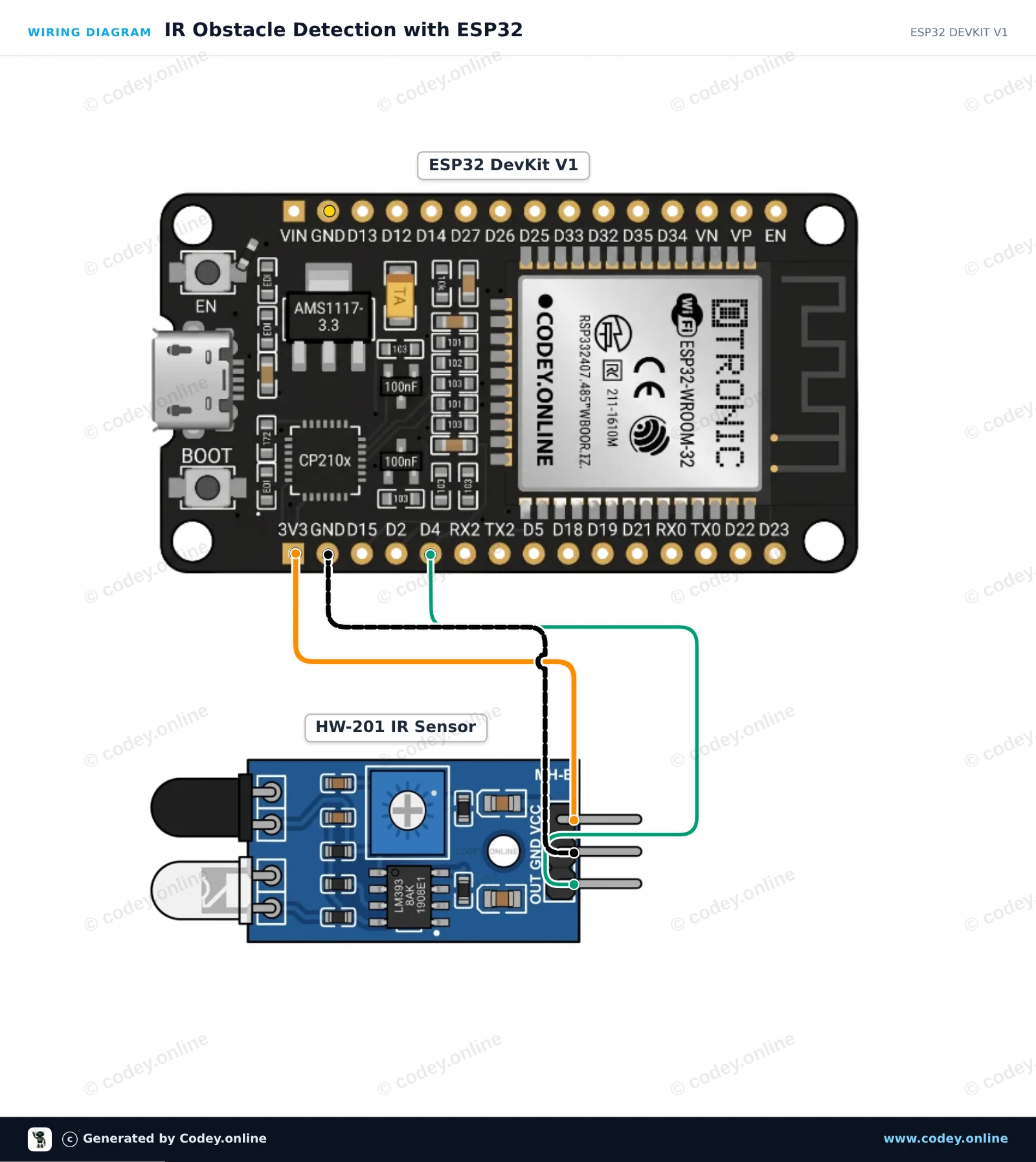

This project reads the digital output from the HW-201 Infrared Obstacle Avoidance Module. When an object is detected within range, the sensor output drops LOW, lighting up the ESP32's built-in LED and printing an alert to the Serial Monitor. You can adjust the detection distance using the potentiometer on the module.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : IR Obstacle Detection with ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : HW-201 Infrared Obstacle Avoidance Module
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// HW-201 IR Obstacle Sensor with ESP32
const int SENSOR_PIN = 4; // Connected to OUT pin of HW-201
const int LED_PIN = 2; // Onboard LED
void setup() {
Serial.begin(115200);
pinMode(SENSOR_PIN, INPUT);
pinMode(LED_PIN, OUTPUT);
Serial.println("HW-201 Obstacle Sensor Ready");
}
void loop() {
// The HW-201 output is active-LOW (LOW when an obstacle is detected)
int sensorState = digitalRead(SENSOR_PIN);
if (sensorState == LOW) {
digitalWrite(LED_PIN, HIGH);
Serial.println("Obstacle detected!");
} else {
digitalWrite(LED_PIN, LOW);
Serial.println("Path clear");
}
delay(200);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online
