SKU: OT2085-B118 Artikelnummer: NA171 EAN: 8126478667001
Knappsats med plastknappar. Perfekt till exempel för att mata in en åtkomstkod.
Knappsatsen har membranbrytare och alla knappar är numrerade 0-9, samt tecknen * och #. Till höger finns ytterligare 4 knappar med A,B,C och D
Modulen är mycket lämplig för inbyggnad. På modulen finns också fyra 2mm hål för montering.
Mått
Längd: 6,9cm
Bredd: 6,5cm
Höjd: 1cm

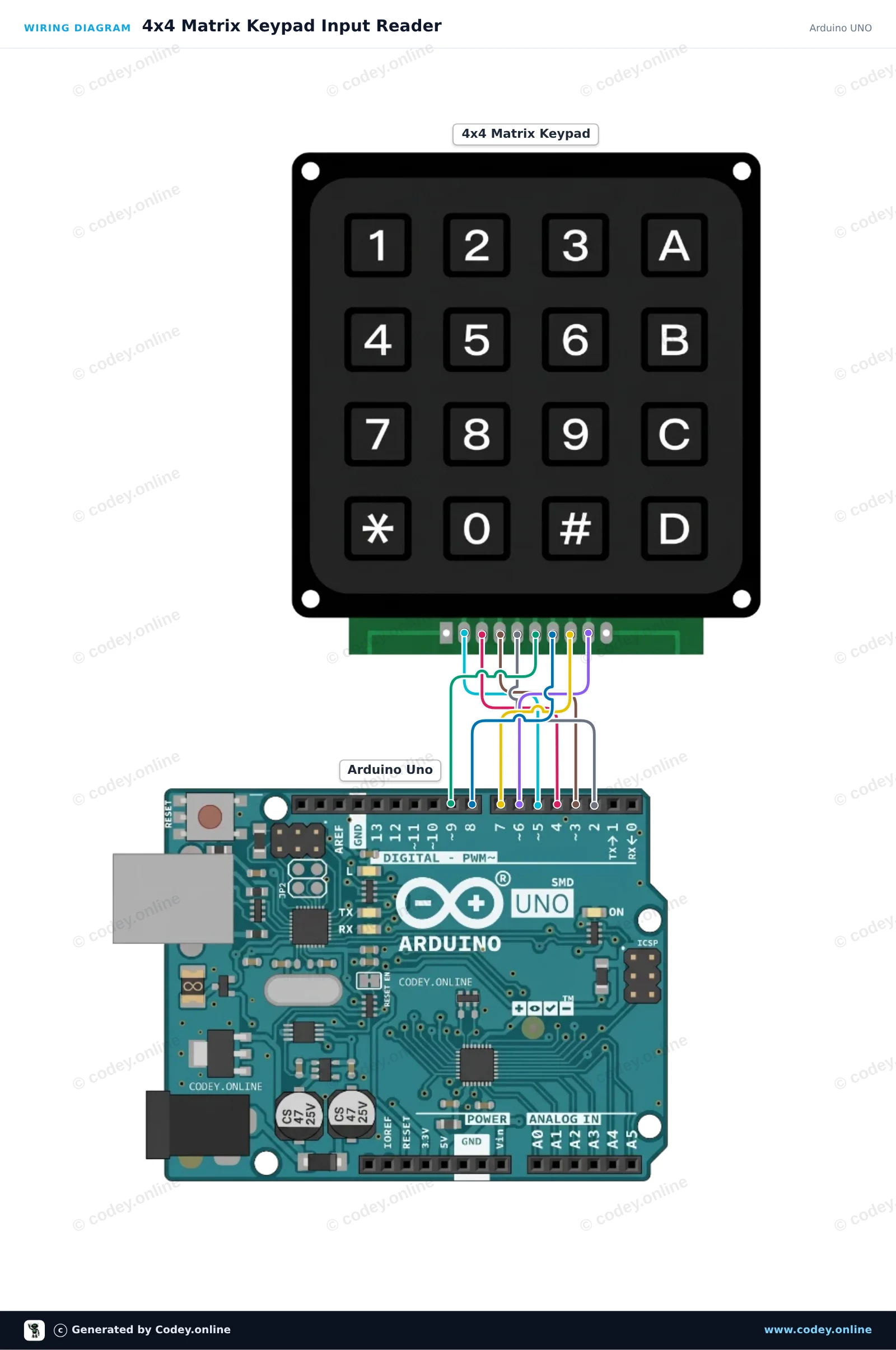

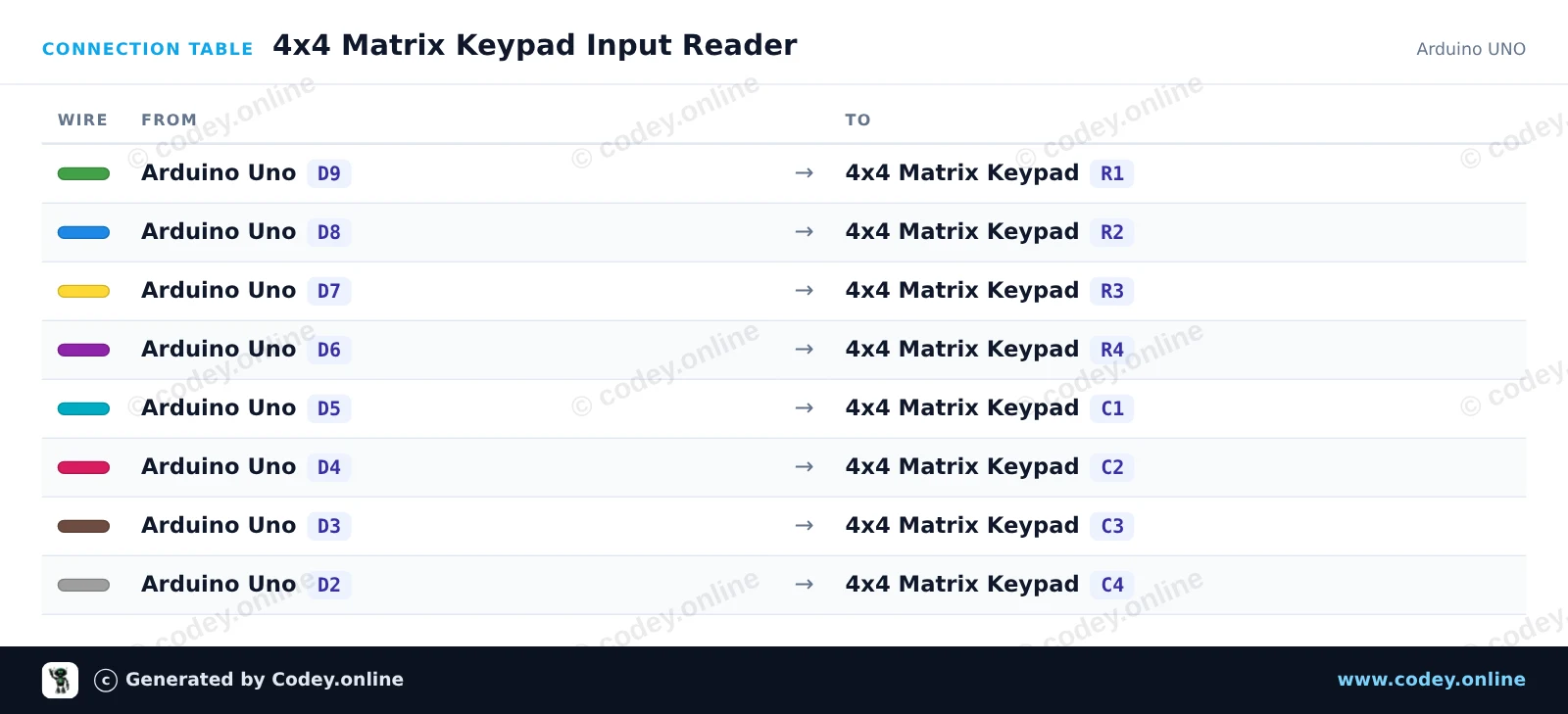

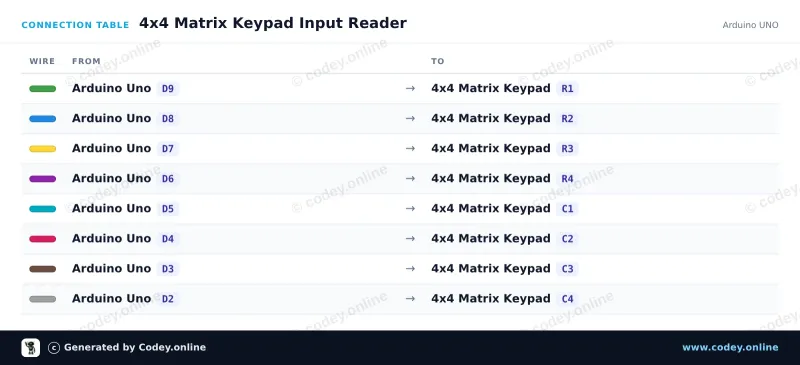

Så här kopplar du 4x4 matris-knappsats svart till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.
This project demonstrates how to read inputs from a 4x4 matrix keypad using an Arduino Uno. When any button on the keypad is pressed, the corresponding character is printed directly to the Serial Monitor at 115200 baud.
English
Nederlands
Frans
Deutsch
Italiano
Español
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 4x4 Matrix Keypad Input Reader
* Board : Arduino UNO (arduino:avr:uno)
* Parts : Keypad 4x4
* Libraries : Keypad 3.1.1
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Keypad.h>
const byte ROWS = 4;
const byte COLS = 4;
char keys[ROWS][COLS] = {
{'1', '2', '3', 'A'},
{'4', '5', '6', 'B'},
{'7', '8', '9', 'C'},
{'*', '0', '#', 'D'}
};
byte rowPins[ROWS] = {9, 8, 7, 6};
byte colPins[COLS] = {5, 4, 3, 2};
Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, ROWS, COLS);
void setup() {
Serial.begin(115200);
Serial.println(F("4x4 Keypad Demo"));
Serial.println(F("Press any key on the keypad..."));
}
void loop() {
char key = keypad.getKey();
if (key) {
Serial.print(F("Key Pressed: "));
Serial.println(key);
}
}Nödvändiga bibliotek: Keypad 3.1.1
Wiring diagram and example code generated by Codey.online — https://www.codey.online

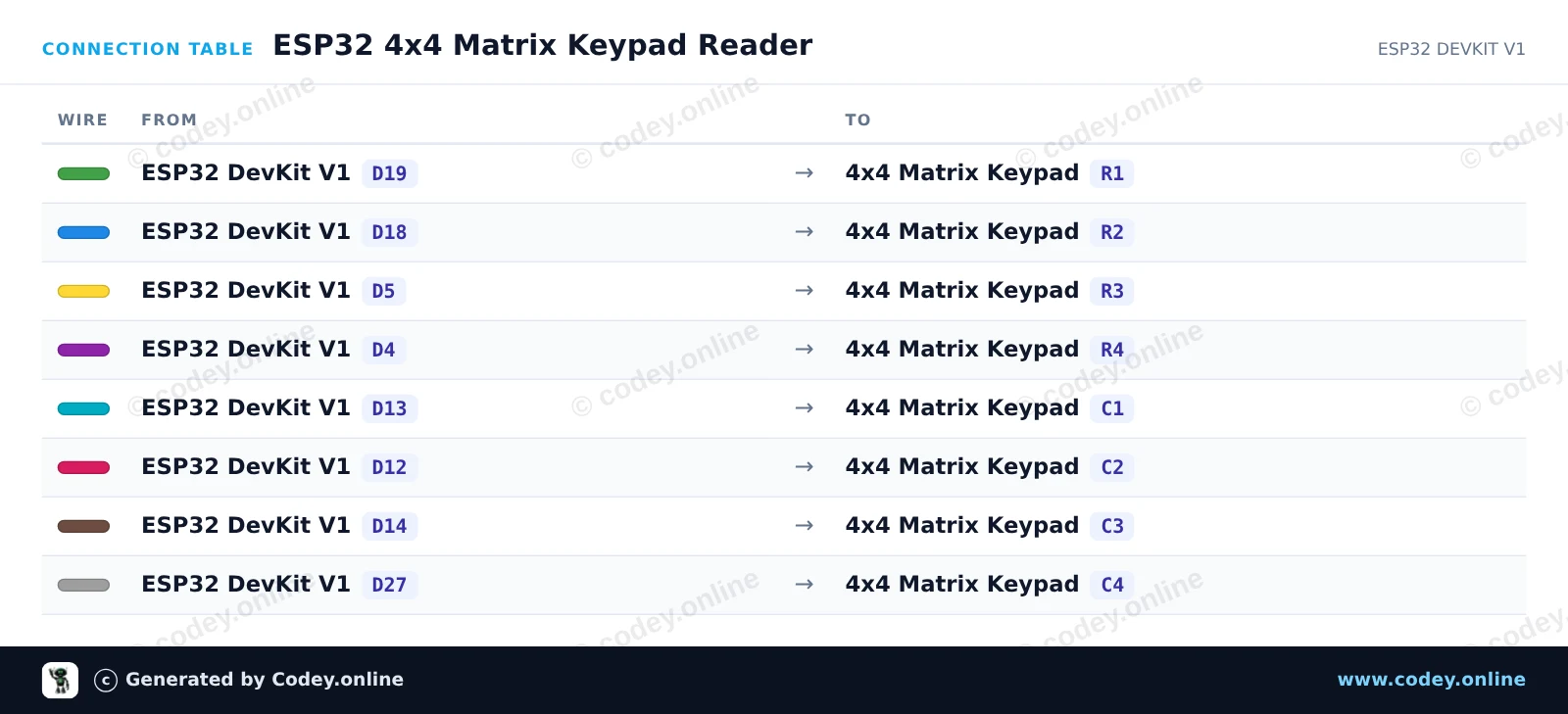

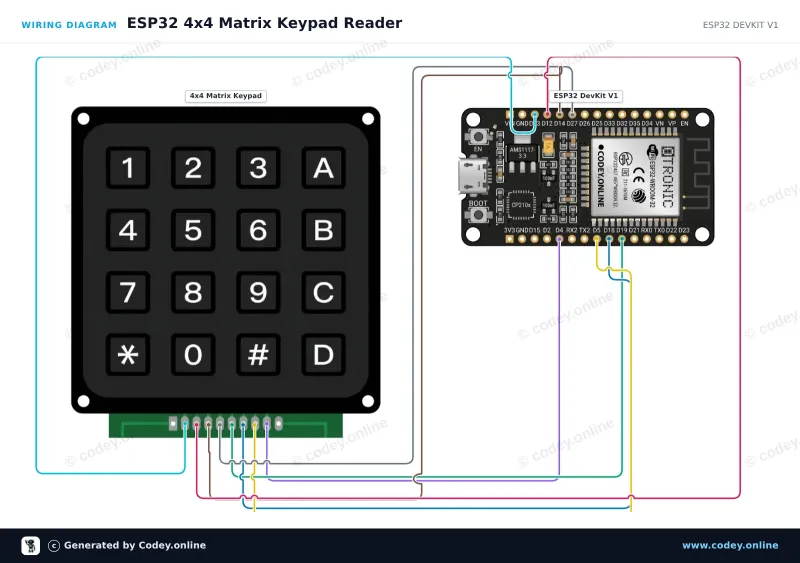

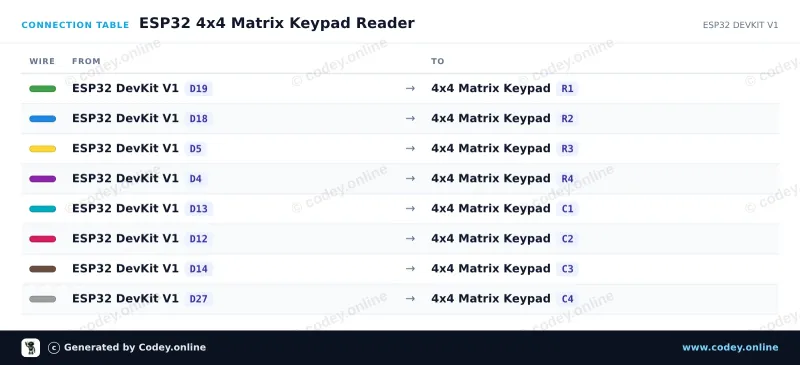

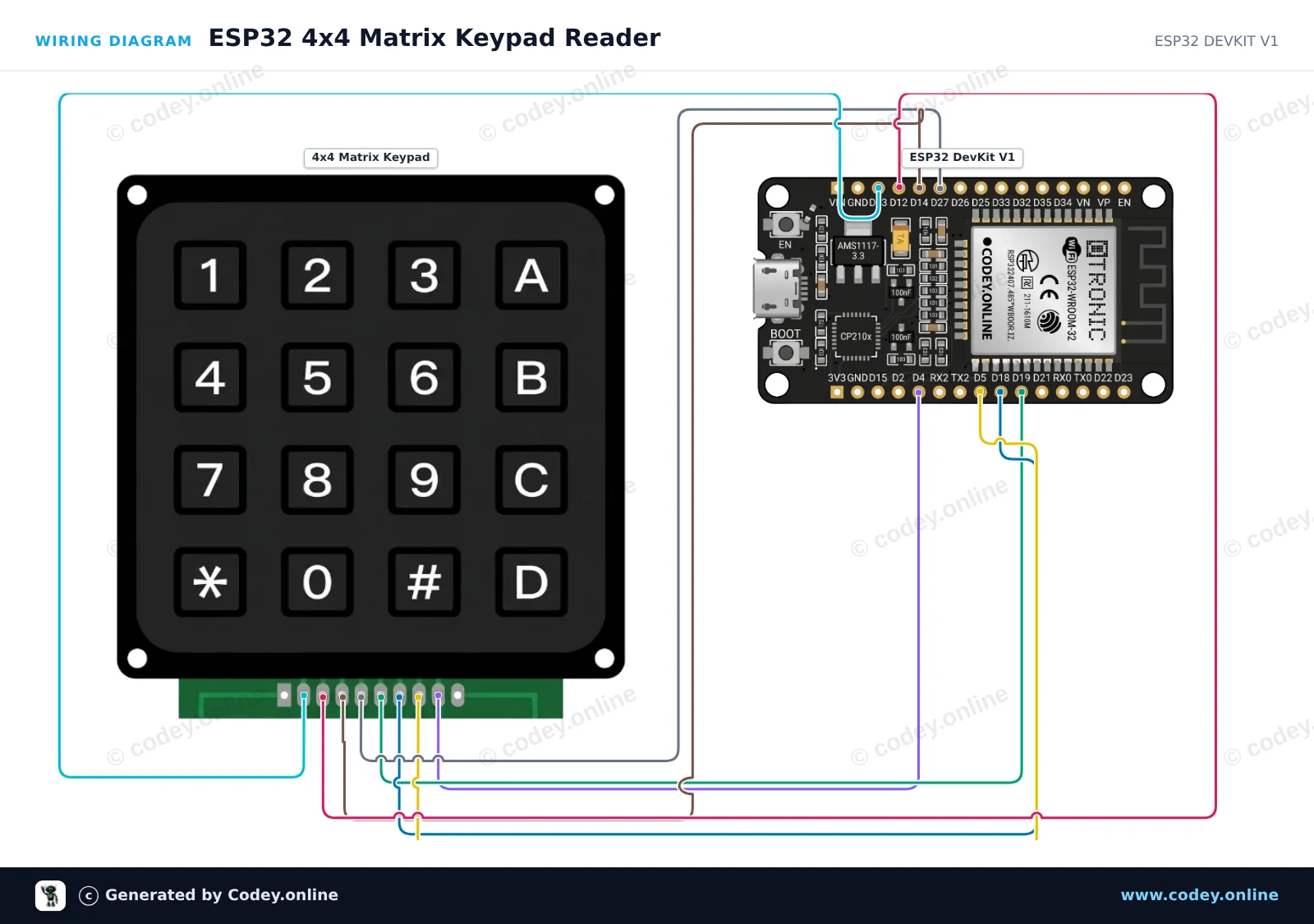

This circuit connects a 4x4 matrix keypad directly to the ESP32 GPIOs. The Keypad library scans the matrix rows and columns using internal pull-up resistors. Pressing any key prints its character to the Serial Monitor in real time.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : ESP32 4x4 Matrix Keypad Reader
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : Keypad 4x4
* Libraries : Keypad 3.1.1
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Keypad.h>
const byte ROWS = 4;
const byte COLS = 4;
char keys[ROWS][COLS] = {
{'1', '2', '3', 'A'},
{'4', '5', '6', 'B'},
{'7', '8', '9', 'C'},
{'*', '0', '#', 'D'}
};
byte rowPins[ROWS] = {19, 18, 5, 4};
byte colPins[COLS] = {13, 12, 14, 27};
Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, ROWS, COLS);
void setup() {
Serial.begin(115200);
Serial.println("4x4 Keypad Test Ready. Press any key...");
}
void loop() {
char customKey = keypad.getKey();
if (customKey) {
Serial.print("Key pressed: ");
Serial.println(customKey);
}
}Nödvändiga bibliotek: Keypad 3.1.1
Wiring diagram and example code generated by Codey.online — https://www.codey.online
