SKU: OT850-C36 Artikelnummer: AA013 EAN: 8720589817180

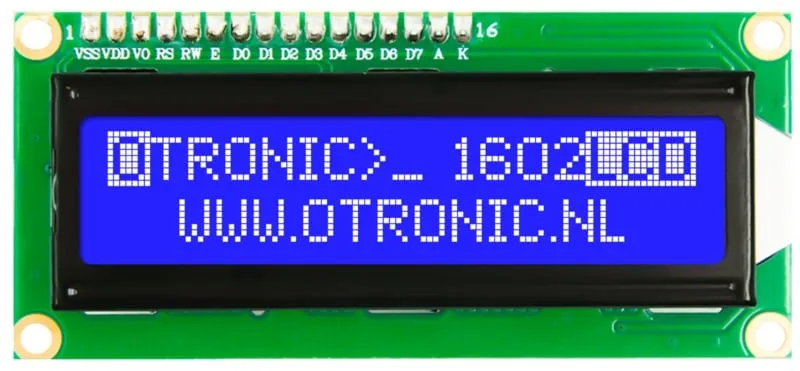

1602 LCD med I2C-modul förlött. Direkt att använda i ditt Arduino-, ESP32-, ESP8266- eller Raspberry Pi-projekt. Mycket enklare än utan denna modul. Nu behövs bara 4 ledningar för att styra denna LCD-display.
LCD med blå bakgrundsbelysning och vita tecken. 2 rader, 20 tecken per rad. Kontrasten är (mjukvarumässigt) justerbar.
– Fungerar på: 5V
– Mått: 98mm x 60mm x 15mm.
Inklusive I2C-modul!
Kom snabbt igång med denna OTRONIC 1602 LCD-display med I2C-modul Ladda ner OTRONIC 1602 LCD SNABBSTARTSGUIDE för ett kopplingsschema och exempelcode för Arduino IDE-programvaran.
Mått
Längd: 8cm
Bredd: 2,6cm
Höjd: 1,1cm
Vid uppspelning laddas videon från YouTube.
Så här kopplar du 1602 LCD blå bakgrundsbelysning med I2C förlött till en Arduino UNO eller ESP32, med ett exempelsketch som du kan ladda upp direkt.

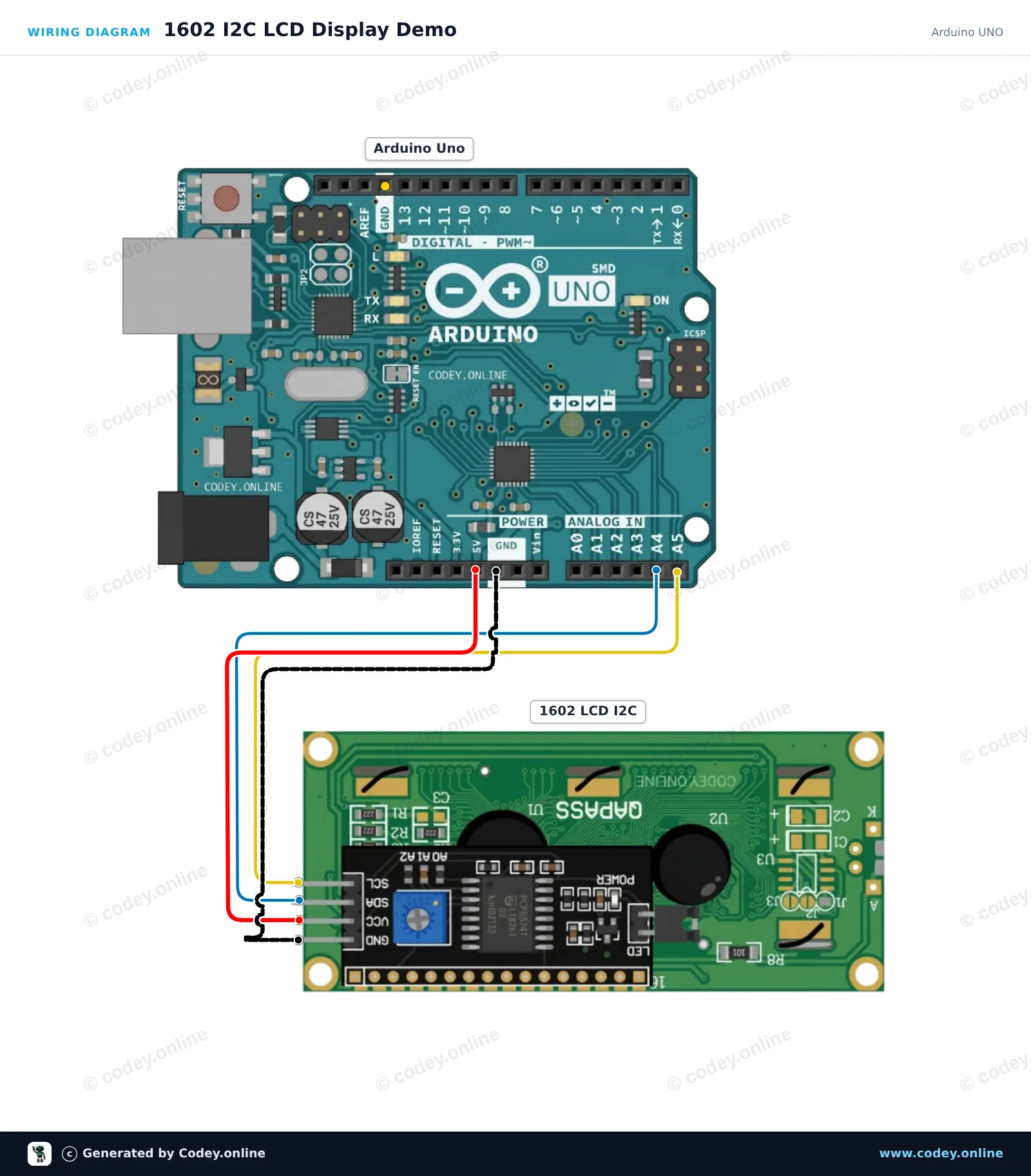

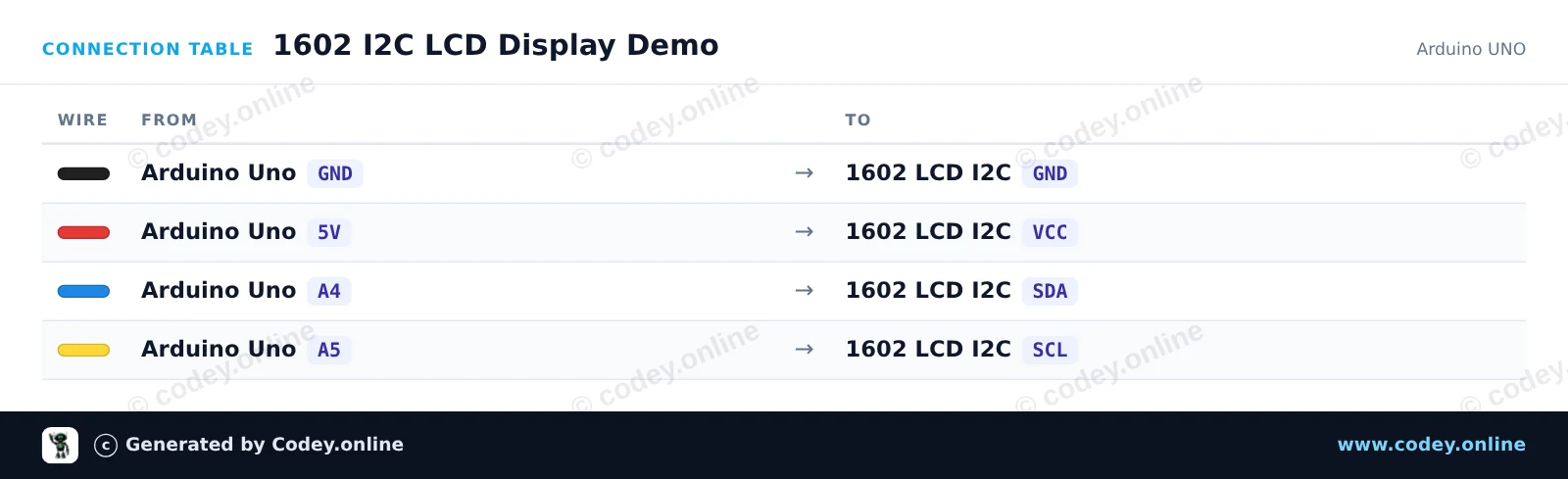

Connect the 1602 I2C LCD display to the Arduino Uno using just four wires. The sketch initializes the display, enables the backlight, and shows a greeting along with a live uptime counter updated every second. Adjust the small potentiometer on the back of the module if the text appears too faint or dark.
English
Nederlands
Frans
Deutsch
Italiano
Español
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 1602 I2C LCD Display Demo
* Board : Arduino UNO (arduino:avr:uno)
* Parts : 1602 LCD I2C DISPLAY
* Libraries : LiquidCrystal I2C 1.1.2
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
// Set the LCD address to 0x27 for a 16 chars and 2 line display
// (If your display stays blank, try address 0x3F)
LiquidCrystal_I2C lcd(0x27, 16, 2);
void setup() {
Serial.begin(115200);
Serial.println(F("Starting 1602 I2C LCD demo..."));
lcd.init();
lcd.backlight();
lcd.setCursor(0, 0);
lcd.print(F("Hello, World!"));
}
void loop() {
// Display the running uptime in seconds on the second line
unsigned long seconds = millis() / 1000;
lcd.setCursor(0, 1);
lcd.print(F("Uptime: "));
lcd.print(seconds);
lcd.print(F("s "));
Serial.print(F("Uptime: "));
Serial.print(seconds);
Serial.println(F(" s"));
delay(1000);
}Nödvändiga bibliotek: LiquidCrystal I2C 1.1.2
Wiring diagram and example code generated by Codey.online — https://www.codey.online

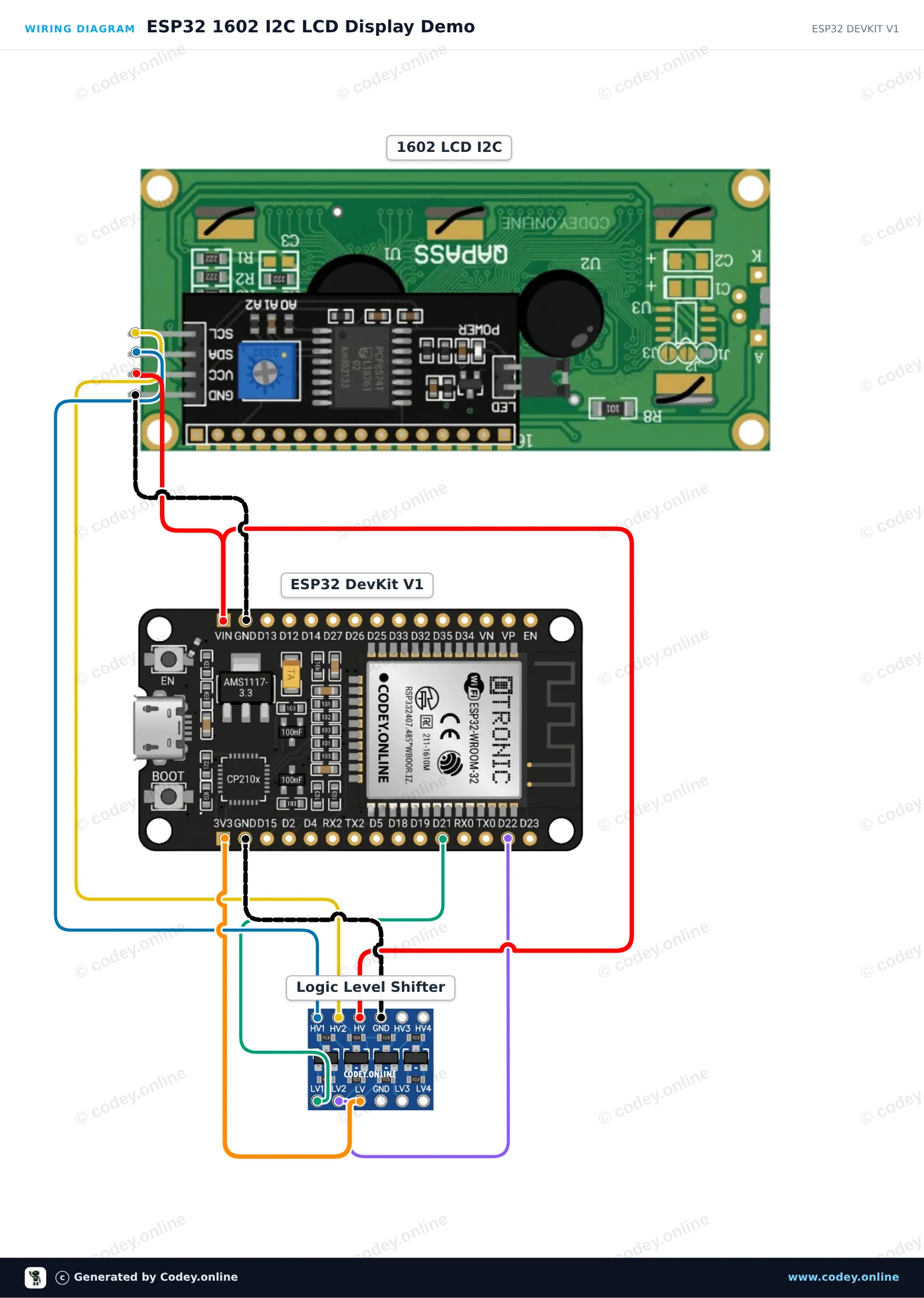

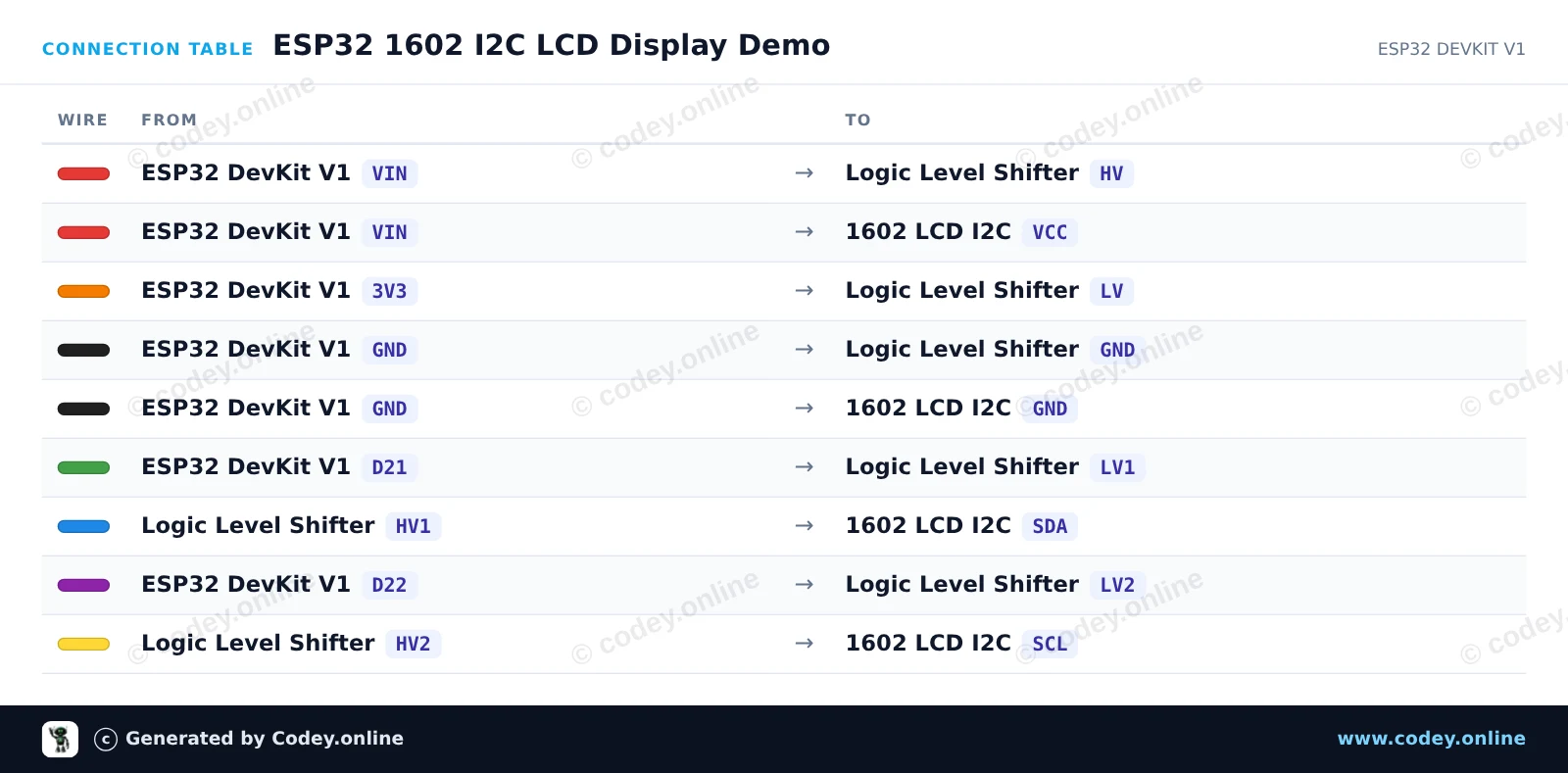

This project demonstrates how to connect a 5V 1602 I2C LCD display to an ESP32 using a logic level shifter for safe bidirectional communication. The display initializes, turns on the backlight, and shows a welcome message alongside an updating uptime counter.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : ESP32 1602 I2C LCD Display Demo
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : 1602 LCD I2C DISPLAY
* Libraries : LiquidCrystal I2C 1.1.2
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
// Set LCD I2C address (commonly 0x27 or 0x3F) and dimensions (16 columns, 2 rows)
LiquidCrystal_I2C lcd(0x27, 16, 2);
void setup() {
// Initialize I2C with ESP32 default pins: SDA (GPIO 21), SCL (GPIO 22)
Wire.begin(21, 22);
lcd.init();
lcd.backlight();
lcd.setCursor(0, 0);
lcd.print("ESP32 LCD Demo");
lcd.setCursor(0, 1);
lcd.print("Uptime: ");
}
void loop() {
// Update uptime counter in seconds
lcd.setCursor(8, 1);
lcd.print(millis() / 1000);
lcd.print("s ");
delay(500);
}Nödvändiga bibliotek: LiquidCrystal I2C 1.1.2
Wiring diagram and example code generated by Codey.online — https://www.codey.online
